Features:

· Two 12-Bit MDACs with Output Amplifiers
· 4-Quadrant Multiplication
· Space-Saving 0.3", 24-Lead DIP and 24-Terminal SOIC Package
· Parallel Loading Structure: AD7847
· (8 + 4) Loading Structure: AD7837








Application

· Automatic Test Equipment
· Function Generation
· Waveform Reconstruction
·Programmable Power Supplies
· Synchro Applications





Pinout

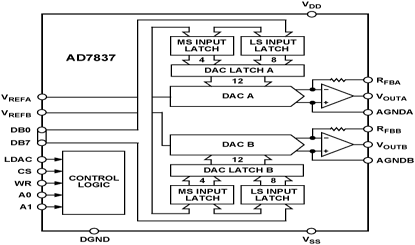

AD7837 Diagram

  Connection Diagram




Specifications

Resolution (Bits) 12bit
DAC Update Rate 250kSPS
DAC Settling Time 4s
# DAC Outputs 2
DAC Type Voltage Out
DAC Input Format Byte
Output FSR (-Vref),(Bip Vref)
Ref Int/Ext Ext
Supply Vnom Dual(+15, -15)
Pwr Diss 210mW
Package DIP,SOIC


VDD to DGND, AGNDA, AGNDB . . . . . .............. 0.3 V to +17 V
VSS1 to DGND, AGNDA, AGNDB . . . . . . . ...........+0.3 V to 17 V
VREFA, VREFB to AGNDA, AGNDB
. . . . . . . . . . . . . . . . . . . . . . . . . ..... VSS 0.3 V to VDD + 0.3 V
AGNDA, AGNDB to DGND . . . . . . . ...........0.3 V to VDD + 0.3 V
VOUTA2, VOUTB2 to AGNDA, AGNDB
. . . . . . . . . . . . . . . . . . . . . . . . . ..... VSS 0.3 V to VDD + 0.3 V
RFBA3, RFBB3 to AGNDA, AGNDB
. . . . . . . . . . . . . . . . . . . . . . . . . ..... VSS 0.3 V to VDD + 0.3 V
Digital Inputs to DGND . . . . . . . . . . ...... 0.3 V to VDD + 0.3 V
Operating Temperature Range
Commercial/Industrial (A, B Versions) . . ..... .40°C to +85°C
Extended (S Version) . . . . . . . . . . . . . . . ... 55°C to +125°C
Storage Temperature Range . . . . . . . . . . . 65°C to +150°C
Lead Temperature (Soldering, 10 secs) . . . . . . . . . . . . 300°C
Power Dissipation (Any Package) to +75°C . . . . . . 1000 mW
Derates above +75°C by . . . . . . . . . . . . . . . . . . . . 10 mW/°C

NOTES
1If VSS is open circuited with VDD and either AGND applied, the VSS pin will float positive, exceeding the Absolute Maximum Ratings. If this possibility exists, a Schottky diode connected between VSS and AGND (cathode to AGND) ensures the Maximum Ratings will be observed.
2The outputs may be shorted to voltages in this range provided the power dissipation of the package is not exceeded.
3AD7837 only.
*Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Only one Absolute Maximum Rating may be applied at any one time.





Description

The AD7837/AD7847 is a complete, dual, 12-bit multiplying digital-to-analog converter with output amplifiers on a monolithic CMOS chip. No external user trims are required to achieve full specified performance.

Both parts are microprocessor compatible, with high speed data latches and interface logic. The AD7847 accepts 12-bit parallel data which is loaded into the respective DAC latch using the WRinput and a separate Chip Select input for each DAC. The AD7837 has a double-buffered 8-bit bus interface structure with data loaded to the respective input latch in two write operations. An asynchronousLDAC signal on the AD7837 updates the DAC latches and analog outputs.

The output amplifiers AD7837/AD7847 are capable of developing ±10 V across a 2 k load. They are internally compensated with low input offset voltage due to laser trimming at wafer level.

The amplifier feedback resistors AD7837/AD7847 are internally connected to VOUT on the AD7847.

The AD7837/AD7847 is fabricated in Linear Compatible CMOS (LC2MOS), an advanced, mixed technology process that combines precision bipolar circuits with low power CMOS logic.

A novel low leakage configuration (U.S. Patent No. 4,590,456) ensures low offset errors over the specified temperature range.
