AD7814

Features: `10-Bit Temperature-to-Digital Converter`55 to +125 Operating Temperature Range`2 Accuracy`SPI- and DSP-Compatible Serial Interface`Shutdown Mode`Space-Saving SOT-23 Package`APPLICATIONS`Hard Disk Drives`Personal Computers`Electronic Test Equipment`Office Equipment`Domestic Appliances`Pr...

product image

AD7814 Picture
See larger image
SeekIC No. : 004270901 Detail

AD7814: Features: `10-Bit Temperature-to-Digital Converter`55 to +125 Operating Temperature Range`2 Accuracy`SPI- and DSP-Compatible Serial Interface`Shutdown Mode`Space-Saving SOT-23 Package`APPLICATIONS`H...

AD7814 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD7814
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`10-Bit Temperature-to-Digital Converter
`55 to +125 Operating Temperature Range
`2 Accuracy
`SPI- and DSP-Compatible Serial Interface
`Shutdown Mode
`Space-Saving SOT-23 Package
`APPLICATIONS
`Hard Disk Drives
`Personal Computers
`Electronic Test Equipment
`Office Equipment
`Domestic Appliances
`Process Control




Application

·Hard Disk Drives
·Personal Computers
·Electronic Test Equipment
·Office Equipment
·Domestic Appliances
·Process Control




Pinout

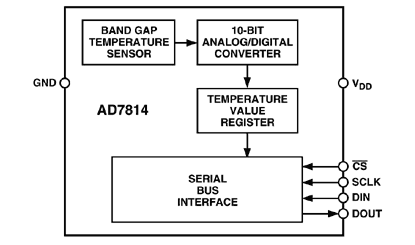

AD7814 Diagram




Specifications

VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to +7 V
Digital Input Voltage to GND . . . . . . . 0.3 V to VDD + 0.3 V
Digital Output Voltage to GND . . . . . 0.3 V to VDD + 0.3 V
Operating Temperature Range . . . . . . . . 55°C to +125°C
Storage Temperature Range . . . . . . . . . .65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . .150°C
SOT-23, Power Dissipation . . . . . . . . . . . . . . . . . . .450 mW
JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . 240°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
MSOP Package, Power Dissipation . . . . . . . . . . . . .450 mW
JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . 206°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C

Output Type Digital
Sensor Output DSP Serial,MICROWIRE (TM),QSPI (TM),SPI (TM)
Temp Res(°C/LSB) 0.25°C/LSB
Supply Voltage Range +2.7V to +5.5V
Temp Range(s) -55 to +125





Description

The AD7814 is a complete temperature monitoring system in a SOT-23 package or 8-lead MSOP package. It contains a band gap temperature sensor and 10-bit ADC to monitor and digitize the temperature reading to a resolution of 0.25°C.

The AD7814 has a flexible serial interface that allows easy interfacing to most microcontrollers. The interface is compatible with SPI®, QSPI™, and MICROWIRE™ protocol, and is also compatible with DSPs. The part features a standby mode that is controlled via the serial interface.

The AD7814's wide supply voltage range, low supply current, and SPI-compatible interface make it ideal for a variety of applications, including personal computers, office equipment, and domestic appliances.
