AD7791

Features: `Supply: 2.5 V to 5.25 V operation`Normal: 75 µA max`Power-down: 1 µA max`RMS noise: 1.1 µV at 9.5 Hz update rate`19.5-bit p-p resolution (22 bits effective resolution)`Integral nonlinearity: 3.5 ppm typical`Simultaneous 50 Hz and 60 Hz rejection`Internal clock oscillat...

product image

AD7791 Picture
See larger image
SeekIC No. : 004270835 Detail

AD7791: Features: `Supply: 2.5 V to 5.25 V operation`Normal: 75 µA max`Power-down: 1 µA max`RMS noise: 1.1 µV at 9.5 Hz update rate`19.5-bit p-p resolution (22 bits effective resolution)`I...

AD7791 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD7791
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Supply: 2.5 V to 5.25 V operation
`Normal: 75 µA max
`Power-down: 1 µA max
`RMS noise: 1.1 µV at 9.5 Hz update rate
`19.5-bit p-p resolution (22 bits effective resolution)
`Integral nonlinearity: 3.5 ppm typical
`Simultaneous 50 Hz and 60 Hz rejection
`Internal clock oscillator
`Rail-to-rail input buffer
`VDD monitor channel
`Temperature range: 40°C to +105°C
`10-lead MSOP




Application

·Smart transmitters
·Battery applications
·Portable instrumentation
·Sensor measurement
·Temperature measurement
·Pressure measurement
·Weigh scales
·4 to 20 mA loops




Pinout

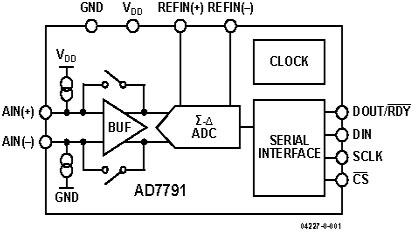

AD7791 Diagram

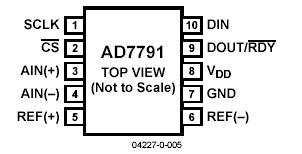

Connection Diagram




Specifications

Resolution (Bits) 24bit
T-Put Rate 120SPS
# Chan 1
Supply V Single(+3),Single(+3.3),Single(+5)
Pwr Diss 800W
Interface Ser,SPI
Ain Range (2Vref) p-p
SNR (dB) n/a
Pkg Type SOP


Parameter Rating
VDD to GND
Analog Input Voltage to GND
Reference Input Voltage to GND
Total AIN/REFIN Current (Indefinite)
Digital Input Voltage to GND
Digital Output Voltage to GND
Operating Temperature Range
Storage Temperature Range
Maximum Junction Temperature
MSOP
JA Thermal Impedance
JC Thermal Impedance
Lead Temperature, Soldering (10 sec)
IR Reflow, Peak Temperature		 0.3 V to +7 V
0.3 V to VDD + 0.3 V
0.3 V to VDD + 0.3 V
30 mA
0.3 V to VDD + 0.3 V
0.3 V to VDD + 0.3 V
40°C to +105°C
65°C to +150°C
150°C
206°C/W
44°C/W
300°C
220°C





Description

The AD7790/AD7791 are low-power, complete analog front ends for low frequency measurement applications. The device consumes 65 A of current typically when operated with a 3 V power supply and 75 A

The AD7791 is a low power, complete analog front end for low frequency measurement applications. It contains a low noise 24-bit -∆ ADC with one differential input that can be buffered or unbuffered. The device operates from an internal clock. Therefore, the user does not have to supply a clock source to the device.

The output data rate from the part is software programmable and can be varied from 9.5 Hz to 120 Hz, with the rms noise equal to 1.1 µV at the lower update rate. The internal clock frequency can be divided by a factor of 2, 4, or 8, which leads to a reduction in the current consumption. The update rate, cutoff frequency, and settling time will scale with the clock frequency.

The part AD7790/AD7791 operates with a power supply from 2.5 V to 5.25 V. When operating from a 3 V supply, the power dissipation for the part is 225 µW maximum. It is housed in a 10-lead MSOP.
