AD7742

Features: AD7741: One Single-Ended Input ChannelAD7742: Two Differential or Three Pseudo-DifferentialInput ChannelsIntegral Nonlinearity of 0.012% at fOUT(Max) = 2.75 MHz(AD7742) and at fOUT(Max) = 1.35 MHz (AD7741)Single +5 V Supply OperationBuffered InputsProgrammable Gain Analog Front-EndOn-Chi...

product image

AD7742 Picture
See larger image
SeekIC No. : 004270788 Detail

AD7742: Features: AD7741: One Single-Ended Input ChannelAD7742: Two Differential or Three Pseudo-DifferentialInput ChannelsIntegral Nonlinearity of 0.012% at fOUT(Max) = 2.75 MHz(AD7742) and at fOUT(Max) = ...

AD7742 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD7742
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

AD7741: One Single-Ended Input Channel
AD7742: Two Differential or Three Pseudo-Differential
Input Channels
Integral Nonlinearity of 0.012% at fOUT(Max) = 2.75 MHz
(AD7742) and at fOUT(Max) = 1.35 MHz (AD7741)
Single +5 V Supply Operation
Buffered Inputs
Programmable Gain Analog Front-End
On-Chip +2.5 V Reference
Internal/External Reference Option
Power Down to 35 mA Max
Minimal External Components Required
8-Lead and 16-Lead DIP and SOIC Packages




Application

Low Cost Analog-to-Digital Conversion
Signal Isolation




Pinout

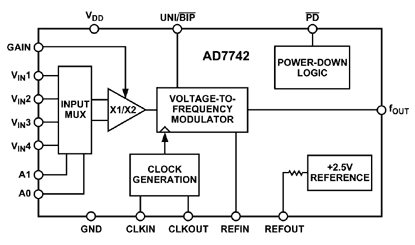

Connection Diagram

AD7742 Diagram




Specifications

VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 0.3V to +7 V
Analog Input Voltage to GND . . . . . . . . . . . . . . . . . 5 V to VDD + 0.3 V
Digital Input Voltage to GND . . . . . . . . . . . . . . . .. 0.3 V to VDD + 0.3 V
Reference Input Voltage to GND . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V
fOUT to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to VDD + 0.3 V
Operating Temperature Range
Automotive (Y Version) . . . . . . . . . . . . . . . . . . . . . 40 °C to +105° C
Industrial (B Version) . . . . . . . . . . . . . . . . . . . . . . . . 40 °C to +85° C
Storage Temperature Range . . . . . . . . . . . . . . . . . 65 °C to +150° C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . ... ... ... . +150 °C
Plastic DIP Package
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . ... ... . . . . 450 mW
q JA Thermal Impedance (8 Lead) . . . . . . . . . . . . . . . ... . . . . 125 °C/W
q JA Thermal Impedance (16 Lead) . . . . . . . . . . . . . . . ... . . . 117 °C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . ..... . . . +215° C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... .. . . +220 °C
SOIC Package
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... .... . 450 mW
q JA Thermal Impedance (8 Lead) . . . . . . . . . . . . . . . . . ... .. . 157° C/W
q JA Thermal Impedance (16 Lead) . . . . . . . . . . . . . . . . ... . . 125° C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . ... .. .. +215 °C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... .. . +220 °C

Architecture Synchronous
# Channels 2-Differential,3-Pseudo Differential
Input Voltage Range (V) +3.5V
Full Scale Fout (kHz) 3072kHz
Reference Voltage (V) 2.5V
Accuracy (%/kHz) 2
Input Clk Frequency (MHz) 6.144MHz
Voltage Supply (V) 4.75 to 5.25
Supply Current 8mA
Package 16-Lead PDIP,16-Lead SOIC





Description

The AD7741/AD7742 are a new generation of synchronous voltage-to-frequency converters (VFCs). The AD7741 is a single-channel version in an 8-lead package (SOIC/DIP) and the AD7742 is a multichannel version in a 16-lead package (SOIC/DIP). No user trimming is required to achieve the specified performance.

The AD7741 has a single buffered input whereas the AD7742 has four buffered inputs that may be configured as two fully-differential inputs or three pseudo-differential inputs. Both parts include an on-chip +2.5 V bandgap reference that provides the user with the option of using this internal reference or an exter-nal reference.

The AD7741 has a single-ended voltage input range from 0 V to REFIN. The AD7742 has a differential voltage input range from VREF to +VREF. Both parts operate from a single +5 V supply consuming typically 6 mA, and also contain a power-down feature that reduces the current consumption to less than 35 m A.
