AD7724

Features: 13 MHz Master Clock Frequency0 V to +2.5 V or 61.25 V Input RangeSingle Bit Output Stream90 dB Dynamic RangePower SuppliesAVDD, DVDD: 5 V ±5%DVDD1: 3 V 5%Logic Outputs 3 V/5 V CompatibleOn-Chip 2.5 V Voltage Reference48-Lead LQFPPinoutSpecificationsDVDD to DGND . . . . . . . . . . . . . ...

product image

AD7724 Picture
See larger image
SeekIC No. : 004270755 Detail

AD7724: Features: 13 MHz Master Clock Frequency0 V to +2.5 V or 61.25 V Input RangeSingle Bit Output Stream90 dB Dynamic RangePower SuppliesAVDD, DVDD: 5 V ±5%DVDD1: 3 V 5%Logic Outputs 3 V/5 V CompatibleOn...

AD7724 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD7724
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

13 MHz Master Clock Frequency
0 V to +2.5 V or 61.25 V Input Range
Single Bit Output Stream
90 dB Dynamic Range
Power Supplies
AVDD, DVDD: 5 V ±5%
DVDD1: 3 V 5%
Logic Outputs 3 V/5 V Compatible
On-Chip 2.5 V Voltage Reference
48-Lead LQFP

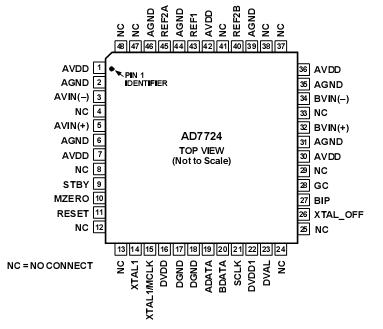

Pinout

Connection Diagram




Specifications

DVDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 0.3 V to +7 V
AVDD to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
AVDD to DVDD . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . 1 V to +1 V
AGND to DGND . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .. . . 0.3 V to +0.3 V
Digital Inputs to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 0.3 V to DVDD + 0.3 V
Digital Outputs to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to DVDD + 0.3 V
VIN(+), VIN() to AGND . . . . . . . . . . . . . . . . . . . . .. . . . . . . 0.3 V to AVDD + 0.3 V
REF1 to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . 0.3 V to AVDD + 0.3 V
REF2 to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to AVDD + 0.3 V
REFIN to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to AVDD + 0.3 V
Operating Temperature Range . . . . . . . . . . . . . .. . . . . . . . . . . . 40 °C to +85 °C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . .. . 65 °C to +150° C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . . . .. +150° C
q JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . . . . . 75 °C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .. . 220 °C

Resolution (Bits) 15bit
T-Put Rate 250kSPS
# Chan 2
Supply V Single(+5)
Pwr Diss 300mW
Interface Ser
Ain Range 2.5V p-p,Uni 2.5V
SNR (dB) n/a
Pkg Type QFP





Description

This device AD7724 consists of two seventh order sigma-delta modula-tors. Each modulator converts its analog input signal into a high speed 1-bit data stream. The part operates from a 5 V power supply and accepts a differential input range of 0 V to +2.5 V or 1.25 V centered about a common-mode bias. The analog inputs are continuously sampled by the analog modulators, eliminating the need for external sample-and-hold circuitry. The input infor-mation is contained in the output stream as a density of ones.The original information can be digitally reconstructed with an appropriate digital filter.

The part AD7724 provides an accurate on-chip 2.5 V reference for each modulator. A reference input/output function is provided to allow either the internal reference or an external system refer-ence to be used as the reference source for the modulator.

The device AD7724 is offered in a 48-lead LQFP package and designed to operate from 40 C to +85 C.
