Product Details

Description



Features:

16-bit resolution with no missing codes
Throughput: 100 kSPS
INL: ±1 LSB typ, ±3 LSB max
True differential analog input range: ±VREF
0 V to VREF with VREF up to VDD on both inputs
Single-supply operation: 2.7 V to 5.5 V
Serial interface SPI-®/QSPI-™/MICROWIRE-™/DSP-compatible
Power Dissipation : 4 mW @ 5 V, 1.5 mW @ 2.7 V,
150 µW @ 2.7 V/10 kSPS
Standby current: 1 nA
8-lead MSOP package




Application

Battery-powered equipment
Data acquisition
Instrumentation
Medical instruments
Process control




Pinout

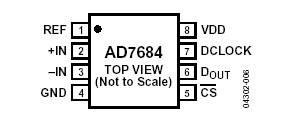

Connection Diagram

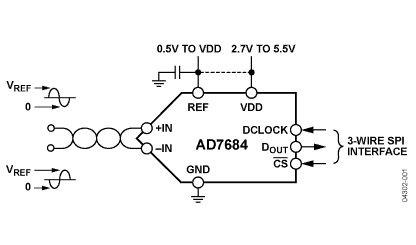

AD7684 Diagram




Specifications

Parameter Rating
Analog Inputs
+IN1, IN1

REF
Supply Voltages
VDD to GND
Digital Inputs to GND
Digital Outputs to GND
Storage Temperature Range
Junction Temperature
JA Thermal Impedance
JC Thermal Impedance
Lead Temperature Range
Vapor Phase (60 sec)
Infrared (15 sec)
GND − 0.3 V to VDD + 0.3 V or
±130 mA
GND − 0.3 V to VDD + 0.3 V

−0.3 V to +6 V
−0.3 V to VDD + 0.3 V
−0.3 V to VDD + 0.3 V
−65°C to +150°C
150°C
200°C/W
44°C/W

215°C
220°C


Resolution (Bits) 16bit
T-Put Rate 100kSPS
# Chan 1
Supply V Single(+2.7 to +5.5),Single(+3),Single(+3.3),Single(+5)
Pwr Diss 6mW
Interface Ser,SPI
Ain Range (2Vref) p-p
SNR (dB) 91dB
Pkg Type SOP





Description

The AD7684 is a 16-bit, charge redistribution, successive approximation, PulSAR™ analog-to-digital converter (ADC) that operates from a single power supply, VDD, between 2.7 V to 5.5 V. It contains a low power, high speed, 16-bit sampling ADC with no missing codes, an internal conversion clock, and a serial, SPI-compatible interface port. The part also contains a low noise, wide bandwidth, short aperture delay, track-and-hold circuit. On theCS falling edge, it samples the voltage difference between +IN and IN pins. The reference voltage, REF, is applied externally and can be set up to the supply voltage. Its power scales linearly with throughput.

The AD7684 is housed in an 8-lead MSOP package, with an operating temperature specified from −40°C to +85°C.
