Features: 16-bit resolution with no missing codes Throughput: 100 kSPS INL: ±1 LSB typ, ±3 LSB max Pseudodifferential analog input range 0 V to VREF with VREF up to VDD Single-supply operation: 2.7 V to 5.5 V Serial interface SPI®/QSPI™/MICROWIRE™/DSP-compatible Power dissipation : 4 mW @ 5 V, 1.5 mW @ 2.7 V, 150 W @ 2.7 V/10 kSPS Standby current: 1 nA 8-lead package: MSOP package and 3 mm*3 mm QFN1 (LFCSP) (SOT-23 size) Improved 2nd source to ADS8320 and ADS8325
ApplicationBattery-powered equipment Data acquisition Instrumentation Medical instruments Process control
Pinout
Specifications
| Resolution (Bits) |
16bit |
| T-Put Rate |
100kSPS |
| # Chan |
1 |
| Supply V |
Single(+2.7 to +5.5) |
| Pwr Diss |
6mW |
| Interface |
Ser,SPI |
| Ain Range |
(Vref) p-p,Uni (Vref) |
| SNR (dB) |
91dB |
| Pkg Type |
CSP,SOP |
| Parameter |
Rating |
| Analog Inputs |
|
| +IN1, IN1 |
GND − 0.3 V to VDD + 0.3 V
or ±130 mA |
| REF |
GND − 0.3 V to VDD + 0.3 V |
| Supply Voltages |
|
| VDD to GND |
−0.3 V to +6 V |
| Digital Inputs to GND |
−0.3 V to VDD + 0.3 V |
| Digital Outputs to GND |
−0.3 V to VDD + 0.3 V |
| Storage Temperature Range |
−65to +150 |
| Junction Temperature |
150 |
| JA Thermal Impedance |
200/W (MSOP-8) |
| JC Thermal Impedance |
44/W (MSOP-8) |
| Lead Temperature Range |
|
| Vapor Phase (60 sec) |
215 |
| Infrared (15 sec) |
220 |

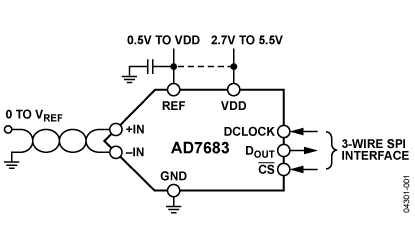

DescriptionThe AD7683 is a 16-bit, charge redistribution, successive approximation, PulSAR™ analog-to-digital converter (ADC) that operates from a single power supply, VDD, between 2.7 V to 5.5 V. It contains a low power, high speed, 16-bit sampling ADC with no missing codes (B grade), an internal conversion clock, and a serial, SPI-compatible interface port. The part also contains a low noise, wide bandwidth, short aperture delay, track-and-hold circuit. On the CS falling edge, it samples an analog input, +IN, between 0 V to REF with respect to a ground sense, IN. The reference voltage, REF, is applied externally and can be set up to the supply voltage. Its power scales linearly with throughput.
The AD7683 is housed in an 8-lead MSOP or an 8-lead QFN (LFCSP) package, with an operating temperature specified from −40 to +85.
