Features: Throughput:
570 kSPS (Warp Mode)
500 kSPS (Normal Mode)
444 kSPS (Impulse Mode)
INL: ±2.5 LSB Max (±0.0038% of Full Scale)
16-Bit Resolution with No Missing Codes
S/(N+D): 90 dB Typ @ 45 kHz
THD: 100 dB Typ @ 45 kHz
Analog Input Voltage Range: 0 V to 2.5 V
Both AC and DC Specifications
No Pipeline Delay
Parallel and Serial 5 V/3 V Interface
SPI®/QSPITM/MICROWIRETM/DSP Compatible
Single 5 V Supply Operation
Power Dissipation
115 mW Maximum,
21W @ 100 SPS
Power-Down Mode: 7 W Max
Package: 48-Lead Quad Flat Pack (LQFP)
48-Lead Chip Scale Package (LFCSP)
Pin-to-Pin Compatible Upgrade of the AD7660ApplicationData Acquisition
Instrumentation
Digital Signal Processing
Spectrum Analysis
Medical Instruments
Battery-Powered Systems

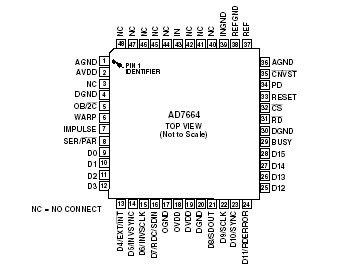

Process ControlPinout
SpecificationsIN2, REF, INGND, REFGND to AGND
. . . . . . . . . . . . . . . . . . . . . . .AVDD + 0.3 V to AGND 0.3 V
Ground Voltage Differences
AGND, DGND, OGND . . . . . . . . . . . . . . . . . . .. . . . . . ±0.3 V
Supply Voltages
AVDD, DVDD, OVDD . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
AVDD to DVDD, AVDD to OVDD . . . . . . . . . . . . . . . . . . ±7 V
DVDD to OVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±7 V
Digital Inputs
Except the Databus D(7:4) . . . . .. . 0.3 V to DVDD + 3.0 V
Databus D(7:4) . . . . . . . . . . . . . .. . 0.3 V to OVDD + 3.0 V
Internal Power Dissipation3 . . . . . .. . . . . . . . . . . . . . 700 mW
Internal Power Dissipation4 . . . . . . . . . . . . . . . . . . . . . 2.5 W
Junction Temperature . . . . . . . . . . . . . . .. . . . . . . . . . . 150°C
Storage Temperature Range . . . . . . . . .. . . 65°C to +150°C
Lead Temperature Range
(Soldering 10 sec) . . . . . . . . . . . . . . . . .. . . . . . . . . . 300°C
NOTES
1Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
2See Analog Input section.
3Specification is for the device in free air:
48-Lead LQFP; JA = 91°C/W, JC = 30°C/W.
4Specification is for device in free air:
48-Lead LFCSP; JA = 26°C/W.
DescriptionThe AD7664 is a 16-bit, 570 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains a high speed 16-bit sampling ADC, an internal conversion clock, error correction circuits, and both serial and parallel system interface ports.
The AD7664 is hardware factory-calibrated and is comprehensively tested to ensure such ac parameters as signal-to-noise ratio (SNR) and total harmonic distortion (THD), in addition to the more traditional dc parameters of gain, offset, and linearity.
AD7664 features a very high sampling rate mode (Warp), a fast mode (Normal) for asynchronous conversion rate applications, and for low power applications, a reduced power mode (Impulse) where the power is scaled with the throughput.
AD7664 is fabricated using Analog Devices' high performance, 0.6 micron CMOS process, with correspondingly low cost and is available in a 48-lead LQFP and a tiny 48-lead LFCSP with operation specified from 40°C to +85°C.
AD7664 Data Sheet
