Fast Throughput Rate: 1 MSPS
Specified for VDD of 2.7 V to 5.25 V
Low Power at Max Throughput Rates:
5.4 mW Max at 870 kSPS with 3 V Supplies
12.5 mW Max at 1 MSPS with 5 V Supplies
16 (Single-Ended) Inputs with Sequencer
Wide Input Bandwidth:
69.5 dB SNR at 50 kHz Input Frequency
Flexible Power/Serial Clock Speed Management
No Pipeline Delays
High Speed Serial Interface SPI™/QSPI™/ MICROWIRE™/DSP Compatible
Full Shutdown Mode: 0.5A Max
28-Lead TSSOP and 32-Lead LFCSP Packages
Resolution (Bits) | 12bit |
T-Put Rate | 1MSPS |
# Chan | 16 |
Supply V | Single(+3),Single(+3.3),Single(+5) |
Pwr Diss (max) | 12.5mW |
Interface | Ser,SPI |
Ain Range | Uni (Vref),Uni (Vref) x 2 |
SNR (dB) | 69.5dB |
Pkg Type | CSP,SOP |

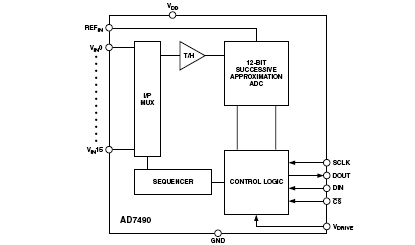

The AD7490 is a 12-bit high speed, low power, 16-channel, successive-approximation ADC. The part operates from a single 2.7 V to 5.25 V power supply and features throughput rates up to 1 MSPS. The part contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in
excess of 1 MHz.
The conversion process and data acquisition of AD7490 are controlled usingCS and the serial clock signal, allowing the device to easily interface with microprocessors or DSPs. The input signal is sampled on the falling edge ofCS and conversion is also initiated at this point. There are no pipeline delays associated with the part.
The AD7490 uses advanced design techniques to achieve very low power dissipation at high throughput rates. For maximum throughput rates, the AD7490 consumes just 1.8 mA with 3 V supplies, and 2.5 mA with 5 V supplies.
By setting the relevant bits in the Control Register of AD7490, the analog input range for the part can be selected to be a 0 to REFIN input or a 0 to 2 ×REFIN with either straight binary or twos complement output coding. The AD7490 features 16 single-ended analog inputs with a channel sequencer to allow a preprogrammed selection of channels to be converted sequentially.
The conversion time is determined by the SCLK frequency of AD7490 as this is also used as the master clock to control the conversion.
The AD7490 is available in a 28-lead thin shrink small outline (TSSOP) package, and a 32-lead chip scale package.
