Features: `Specified for VDD of 2.7 V to 5.25 V`Low power at max throughput rate:3.3 mW max at 555 kSPS with VDD = 3 V7.25 mW max at 555 kSPS with VDD = 5 V`Pseudo differential analog input`Wide input bandwidth:70 dB SINAD at 100 kHz input frequency`Flexible power/serial clock speed management`No ...

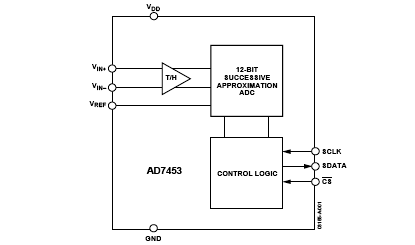

AD7453: Features: `Specified for VDD of 2.7 V to 5.25 V`Low power at max throughput rate:3.3 mW max at 555 kSPS with VDD = 3 V7.25 mW max at 555 kSPS with VDD = 5 V`Pseudo differential analog input`Wide inp...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Resolution (Bits) | 12bit |
T-Put Rate | 555kSPS |
# Chan | 1 |
Supply V | Single(+3),Single(+3.3),Single(+5) |
Pwr Diss | 7.25mW |
Interface | Ser,SPI |
Ain Range | (2Vref) p-p |
SNR (dB) | 70dB |
Pkg Type | SOT |
Parameter | Rating |
VDD to GND VIN+ to GND VIN to GND Digital Input Voltage to GND Digital Output Voltage to GND VREF to GND Input Current to Any Pin Except Supplies1 Operating Temperature Range Commercial (B Version) Storage Temperature Range Junction Temperature JA Thermal Impedance JC Thermal Impedance Lead Temperature, Soldering Vapor Phase (60 secs) Infrared (15 secs) ESD |
0.3 V to +7 V 0.3 V to VDD + 0.3 V 0.3 V to VDD + 0.3 V 0.3 V to +7 V 0.3 V to VDD + 0.3 V 0.3 V to VDD + 0.3 V ±10 mA 40 to +85 65 to +150 150 211.5/W 91.99/W 215 220 1 kV |
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
1 Transient currents of up to 100 mA will not cause SCR latch-up.
