AD7401

Features: `10 MHz Data Rate (AD7400)`2nd Order Modulator `±4 LSB INL @16 Bits `Onboard Digital Isolator`Onboard Reference`Low Power Operation: 15 mA @ 5 V `-40*C to +105 Operating Range`16-ld SOIC Package `Safety and Regulatory Approvals `UL Recognition `3750 VRMS for 1 minute per UL 1577 `CSA Com...

product image

AD7401 Picture
See larger image
SeekIC No. : 004270131 Detail

AD7401: Features: `10 MHz Data Rate (AD7400)`2nd Order Modulator `±4 LSB INL @16 Bits `Onboard Digital Isolator`Onboard Reference`Low Power Operation: 15 mA @ 5 V `-40*C to +105 Operating Range`16-ld SOIC P...

AD7401 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD7401
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`10 MHz Data Rate (AD7400)
`2nd Order Modulator
`±4 LSB INL @16 Bits
`Onboard Digital Isolator
`Onboard Reference
`Low Power Operation: 15 mA @ 5 V
`-40*C to +105 Operating Range
`16-ld SOIC Package
`Safety and Regulatory Approvals
`UL Recognition
`3750 VRMS for 1 minute per UL 1577
`CSA Component Acceptance Notice ~5A
`VDE Certificate of Conformity
`DIN EN 60747-5-2 (VDE 0884 Part 2):2003-01
`DIN EN 60950 (VDE 0805): 2001-12; EN 60950:2000
` VIORM = 840VPEAK




Application

·AC Motor Control
·Data Acquisition Systems
· A/D + Opto-Isolator Replacement




Pinout

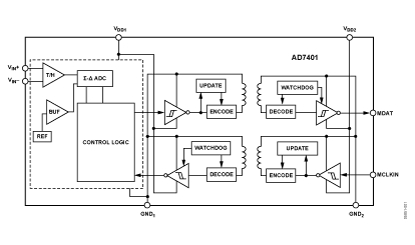

AD7401 Diagram

Connection Diagram




Specifications

Resolution (Bits) 16bit
T-Put Rate 20MSPS
# Chan 1
Supply V Multi(+3, +5 Isolated),Multi(+5, +5 Isolated)
Pwr Diss 100mW
Interface Ser
Ain Range 0.4 V p-p
SNR (dB) 80dB
Pkg Type SOIC


VDD1 to GND1
 -0.3 V to +6.5V
VDD2 to GND2
 -0.3 V to +6.5 V
Analog Input Voltage to GND1
 0.3 V to VDD1 +0.3V
Digital Input Voltage to GND2
 -0.3 V to VDD2 +0.5 V
Output Voltage to GND2
 -0.3 V to VDD2 +0.3V
Input Current to Any Pin Except Supplies2
 ±10mA
Operating Temperature Range
 40°C to +105°C
Storage Temperature Range
 65°C to +150°C
Junction Temperature
 150°C
SOIC Package
JA Thermal Impedance

 89.2 °C/W
Jc Thermal Impedance
 55.6°C/W
Resistance (Input-Output), RI-O

 1012





Description

The AD7400/AD7401 are 2nd order sigma-delta modulators that convert an analog input signal into a high speed 1-bit data stream with onboard digital isolation based on Analog Devices' iCoupler® technology. The AD7400/AD7401 operate from a 5 V power supply and accept a differential input signal of ±200 mV. The analog input is continuously sampled by the analog modulator, eliminating the need for external sample and hold circuitry. The input information is contained in the output stream as a density of ones with data rates up to 20MHz. The original information can be reconstructed with an appropriate digital filter. The serial I/O may use a 5V or 3V supply (VDD2).
