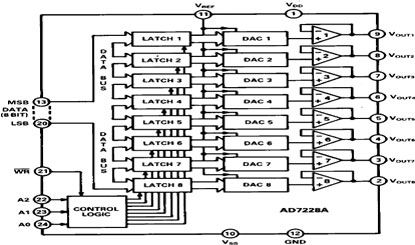

AD7228

The AD7228 has some absolute maximum ratings.(TA=+25 unless otherwise noted).The VDD to GND is -0.3V to +17V.The VDD to VSS is +0.3 V to +24 V.The digtal input voltage is -0.3 V,VDD.The VREF to GND is -0.3 V,VDD.The VOUT to GND is VSS,VDD.The power dissipation up to +75 is 1000mW.The power dissipation derates above +75 is 2.0 mW/.The operating temperature range is -55 to +125.The thermal resistance (JC):Case 1 (Q-24) is see MIL-M-38510,appendix C.Case 3 (E-28A) is see MIL-M-38510,appendix C.The storage temperature is -65 to +125.The lead temperature (soldering 10 sec) is +300.The junction temperature is +175.Outputs may be shorted to any voltage in the range Vss to VDD provided that the power disspitation of the package is not exceeded.Typical short circuit for a short to VSS is 50 mA.

The AD7228 has some recommened operating conditions.Operating voltage range for dual supply:the positive supply (VDD) is +10.8 V to +16.5V.The negative supply (VSS) is -4.5V to -5.5V.The reference voltage (VREF) is +2.0V to +10.0V.Operating voltage range for single supply:the positive supply (VDD) is +13.5V to +16.5V.The negative supply (VSS) is 0V.The reference voltage (VREF) is +10V.

At present there is not too much information about this model.If you are willing to find more about AD7228, please pay attention to our web! We will promptly update the relevant information.
