Features:

Four 8-Bit DACs with Output Amplifiers
Separate Reference Input for Each DAC
mP Compatible with Double-Buffered Inputs
Simultaneous Update of All Four Outputs
Operates with Single or Dual Supplies
Extended Temperature Range Operation
No User Trims Required
Skinny 24-Pin DIP, SOIC and 28-Terminal Surface Mount Packages


Pinout

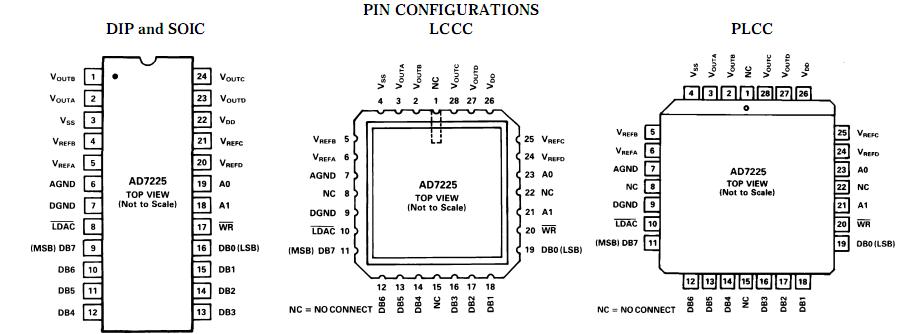

Connection Diagram


Specifications

VDD to AGND  . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V, +17 V
VDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +17 V
VDD to VSS  . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +24 V
AGND to DGND  . . . . . . . . . . . . . . . . . . . . . . . .     0.3 V, VDD
Digital Input Voltage to DGND  . . . . . . .   0.3 V, VDD + 0.3 V
VREF to AGND  . . . . . . . . . . . . . . . . . . . .   0.3 V, VDD + 0.3 V
VOUT to AGND2. . . . . . . . . . . . . . . . . . . . . . . . . . . .  VSS, VDD
Power Dissipation (Any Package) to +75°C . . . . . . . 500 mW
Derates above 75°C by  . . . . . . . . . . . . . . . . . . . .2.0 mW/°C
Operating Temperature
Commercial (K, L Versions)  . . . . . . . . . . .     40°C to +85°C


Description

The AD7225 contains four 8-bit voltage output digital-to-analog converters, with output buffer amplifiers and interface logic on a single monolithic chip. Each D/A converter has a separate reference input terminal. No external trims are required to achieve full specified performance for the part.

Specified performance is guaranteed for input reference voltages from +2 V to +12.5 V when using dual supplies. The part is also specified for single supply operation using a reference of +10 V. Each output buffer amplifier is capable of developing +10 V across a 2 kΩ load. The AD7225 is fabricated on an all ion-implanted high-speed Linear Compatible CMOS (LC2 MOS) process which has been specifically developed to integrate high speed digital logic cir- cuits and precision analog circuitry on the same chip.
