Series: -
Accuracy: ±0.5°C
Packaging: Tube
Manufacturer: Analog Devices Inc
Output Type: Current
Voltage - Supply: 4 V ~ 30 V
Sensing Temperature: -55°C ~ 150°C

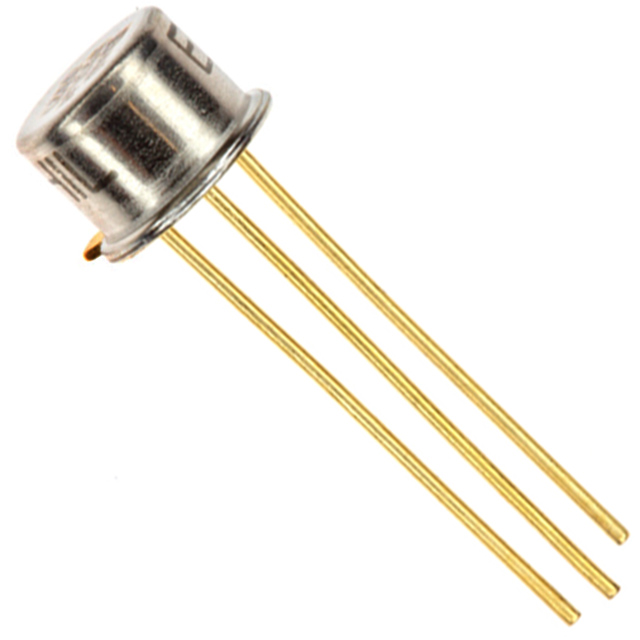

Package / Case: TO-205AA, TO-5-3 Metal Can
Supplier Device Package: Metal Can
Pinout
DescriptionThe AD590MH is one member of the AD590 family which designed as one kind of two-terminal integrated circuit temperature transducer that produces an output current proportional to absolute temperature with supply voltages between +4 V and +30 V.The device acts as a high impedance, constant current regulator passing 1 mA/K and combined with the elimination of support circuitry.
Features of the AD590MH are:(1)wide range:-55 to +150;(2)linear current output:1 uA/K;(3)probe compatible ceramic sensor package;(4)two terminal device:voltage in/current out;(5)laser trimmed to 60.5 calibration accuracy (AD590M);(6)excellent linearity:60.38C over full range (AD590M);(7)wide power supply range:+4 V to +30 V;(8)sensor isolation from case;(9)low cost.
The absolute maximum ratings of the AD590MH can be summarized as:(1)forward voltage ( E+ or E-):+44 volts;(2)reverse voltage (E+ to E-):-20 volts;(3)breakdown voltage (case to E+ or E-):±200 volts;(4)rated performance temperature range:-55 to +150°C;(5)storage temperature range:-65 to +155°C;(6)lead temperature (soldering,10 sec):+300 °C.If you want to know more information such as the electrical characteristics about the AD590MH,please download the datasheet in www.seekic.com or www.chinaicmart.com .
Parameters: | Technical/Catalog Information | AD590MH |
| Vendor | Analog Devices Inc |
| Category | Sensors, Transducers |
| Voltage - Supply | 4 V ~ 30 V |
| Package / Case | TO-52-3, Metal Can |
| Packaging | Tube |
| Output Type | Current |
| Sensing Temperature | -55°C ~ 150°C |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AD590MH
