AD589

Features: Superior Replacement for Other 1.2 V ReferencesWide Operating Range: 50 mA to 5 mALow Power: 60 mW Total PDat 50 mALow Temperature Coefficient:10 ppm/8C max, 08C to +708C (AD589M)25 ppm/8C max, 558C to +1258C(AD589U)Two-Terminal Zener OperationLow Output Impedance: 0.6 VNo Frequency Co...

product image

AD589 Picture
See larger image
SeekIC No. : 004269541 Detail

AD589: Features: Superior Replacement for Other 1.2 V ReferencesWide Operating Range: 50 mA to 5 mALow Power: 60 mW Total PDat 50 mALow Temperature Coefficient:10 ppm/8C max, 08C to +708C (AD589M)25 ppm/8C...

AD589 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD589
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Superior Replacement for Other 1.2 V ReferencesWide Operating Range: 50 mA to 5 mALow Power: 60 mW Total PDat 50 mALow Temperature Coefficient:10 ppm/8C max, 08C to +708C (AD589M)25 ppm/8C max, 558C to +1258C(AD589U)Two-Terminal "Zener" OperationLow Output Impedance: 0.6 VNo Frequency Compensation RequiredLow CostMIL-STD-883 Compliant Versions Available

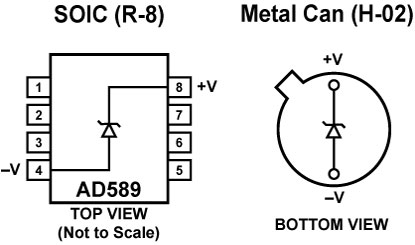

Pinout

Connection Diagram

AD589 Diagram




Specifications

Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 mA
Reverse Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 mA
Power Dissipation1
. . . . . . . . . . . . . . . . . . . . . . . . . . . 125 mW
Storage Temperature . . . . . . . . . . . . . . . . . . 65 to +175
Operating Junction Temperature Range . . . . 55 to +150
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . +300

Vout 1.2
Initial Accuracy (%) 1.2
Ref Out TC (ppm/C) 10ppm/C
Supply Voltage Range (V) n/a, Shunt Type Reference
Supply Current 50A
Ref Output Current (mA) n/a
0.1-10 Hz Noise (V p-p) 5V p-p
Temp Range(s) -55 to +125,0 to +70
Package Metal Can,SOIC
Reference Type Shunt





Description

The AD589 is a two-terminal, low cost, temperature compen-sated bandgap voltage reference which provides a fixed 1.23 Voutput voltage for input currents between 50 µA and 5.0 mA.
The high stability of the AD589 is primarily dependent uponthe matching and thermal tracking of the on-chip components.Analog Devices'precision bipolar processing and thin-filmtechnology combine to provide excellent performance at lowcost.

Additionally, the active circuit produces an output impedanceten times lower than typical low-TC Zener diodes. This featureallows operation with no external components required tomaintain full accuracy under changing load conditions.
The AD589 is available in seven versions. The AD589J, K, Land M grades are specified for 0 to +70operation, whilethe S, T, and U grades are rated for the full 55 to +125temperature range. All grades are available in a metal can(H-02A) package. The AD589J is also available in an 8-pinSOIC package.
