AD5724R

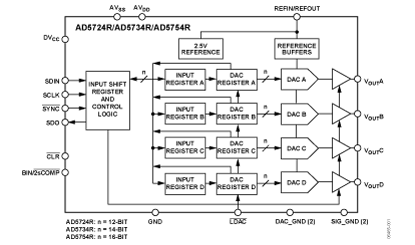

The AD5724R is designed as a quad,12-/14-/16-bit serial input,voltage output, digital-to-analog converters.They operate from single supply voltages of +4.5 V up to +16.5 V or dual supply voltages from ±4.5 V up to ±16.5 V.Nominal fullscale output range is software-selectable from the options of +5 V,+10 V,+10.8 V,±5 V,±10 V,or ±10.8 V.Integrated output amplifiers,reference buffers,and proprietary power-up/powerdown control circuitry are also provided.The parts offer guaranteed monotonicity,integral nonlinearity (INL) of ±16 LSB maximum,low noise,10 s maximum settling time,and an on-chip +2.5 V reference.

Features of the AD5724R can be summarized as:(1)complete,quad,12-/14-/16-bit D/A converter;(2)operates from single/dual supplies;(3)software programmable output range;(4)+5 V,+10 V,+10.8 V,±5 V,±10 V,±10.8 V;(5)INL error:±16 LSB maximum, DNL error:±1 LSB maximum;(6)total unadjusted error (TUE):0.1% FSR maximum;(7)settling time:10 s maximum;(8)integrated reference buffers;(9)output control during power-up/brownout;(10)DSP/microcontroller-compatible serial interface;(11)operating temperature range:-40°C to +85°C.It can be used in industrial automation,closed-loop servo control, process control,automotive test and measurement,programmable logic controllers.

Also the absolute maximum ratings of the AD5724R are also very important:(1)lead temperature:JEDEC industry standard;(2)soldering:J-STD-020;(3)power dissipation:(TJ maxTA)/JA;(4)24-Lead TSSOP package:JA thermal impedance 90°C/W;(5)junction temperature,TJ max:105°C;(6)storage temperature range:-65°C to +150°C;(7)operating temperature range:;-40°C to +85°C.If you want to know more information such as the electrical characteristics about this part,please download the datasheet in www.seekic.com and www.chinaicmart.com .
