Features: ·6-lead SC70 package
·Power-down to <100 nA @ 3 V
·Micropower operation: max 100 µA @ 5 V
·2.7 V to 5.5 V power supply
·Guaranteed monotonic by design
·Power-on-reset to 0 V with brownout detection
·3 power-down functions
·Low power serial interface with Schmitt-triggered inputs
·On-chip output buffer amplifier, rail-to-rail operation
·SYNC interrupt facility
·Minimised Zero Code Error
·AD5601 Buffered 8-Bit Dac in SC70 B Version: ±0.5 LSB INL
·AD5611 Buffered 10-Bit Dac in SC70 B Version: ±0.5 LSB INL, A Version: ±4 LSB INL
·AD5621 Buffered 12-Bit Dac in SC70 B Version: ±1 LSB INL , A Version: ±6 LSB INLApplication·Voltage Level Setting
·Portable battery-powered instruments
·Digital gain and offset adjustment
·Programmable voltage and current sources
·Programmable attenuatorsPinout
Specifications
| Resolution (Bits) |
12bit |
| DAC Update Rate |
1.7MSPS |
| DAC Settling Time |
6s |
| # DAC Outputs |
1 |
| DAC Type |
Voltage Out |
| DAC Input Format |
Ser,SPI |
| Output FSR |
(Uni Vdd) |
| Ref Int/Ext |
Ext |
| Supply Vnom |
Single(+3),Single(+3.3),Single(+5) |
| Pwr Diss |
550W |
| Package |
SC70 |
|
Parameter |
Rating |
VDD to GND
Digital Input Voltage to GND
VOUT to GND
Operating Temperature Range
Industrial (B Version)
Storage Temperature Range
Maximum Junction Temperature
SC70 Package
JA Thermal Impedance
JA Thermal Impedance
Lead Temperature, Soldering
Vapor Phase (60 sec)
Infrared (15 sec)
ESD |
0.3 V to + 7.0 V
0.3 V to VDD + 0.3 V
0.3 V to VDD + 0.3 V
40°C to +125°C
65°C to +160°C
150°C
332°C/W
120°C/W
215°C
220°C
2.0 kV |
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

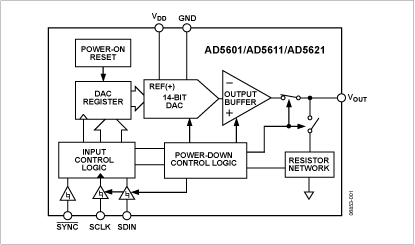

DescriptionThe AD5601/AD5611/AD5621, members of the
nanoDAC? family, are single, 8-/10-/12-bit, buffered voltage output DACs that operate from a single 2.7 V to 5.5 V supply, consuming typically 75 A at
The AD5601/AD5611/AD5621, members of the nanoDACTM family, are single, 8/10/12-bit buffered voltage out DAC that operates from a single 2.7 V to +5.5 V supply consuming <100 µA at 5 V, and comes in a tiny SC70 package. Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The AD5601/AD5611/AD5621 utilizes a versatile 3- wire serial interface that operates at clock rates up to 30 MHz and is compatible with SPI®, QSPI™, MICROWIRE™, and DSP interface standards.
The reference for AD5601/AD5611/AD5621 is derived from the power supply inputs and thus gives the widest dynamic output range. The part incorporates a power-on-reset circuit that ensures the DAC output powers up to 0 V and remains there until a valid write takes place to the device. The part contains a power-down feature that reduces the current consumption of the device to <100 nA at 3 V and provides software selectable output loads while in power-down mode. The part is put into power-down mode over the serial interface. The low power consumption of this part in normal operation makes it ideally suited to portable battery operated equipment.The combination of small package and low power make these devices idea for level setting requirements such as generating bias or control voltages in space constrained and power sensitive applications
