AD5612

Features: `Single 8-/10-/12-bit DAC, 2 LSB INL`6-lead SC70 package`Micropower operation: max 100 A @ 5 V`Power-down to <150 nA @ 3 V`2.7 V to 5.5 V power supply`Guaranteed monotonic by design`Power-on reset to 0 V with brownout detection`3 power-down functions`I2C®-compatible serial interfa...

product image

AD5612 Picture
See larger image
SeekIC No. : 004269418 Detail

AD5612: Features: `Single 8-/10-/12-bit DAC, 2 LSB INL`6-lead SC70 package`Micropower operation: max 100 A @ 5 V`Power-down to <150 nA @ 3 V`2.7 V to 5.5 V power supply`Guaranteed monotonic by design`Pow...

AD5612 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD5612
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Single 8-/10-/12-bit DAC, 2 LSB INL
`6-lead SC70 package
`Micropower operation: max 100 A @ 5 V
`Power-down to <150 nA @ 3 V
`2.7 V to 5.5 V power supply
`Guaranteed monotonic by design
`Power-on reset to 0 V with brownout detection
`3 power-down functions
`I2C®-compatible serial interface supports standard (100 kHz), fast (400 kHz), and high speed (3.4 MHz) modes
`On-chip output buffer amplifier, rail-to-rail operation




Application

·Process control
·Data acquisition systems
·Portable battery-powered instruments
·Digital gain and offset adjustment
·Programmable voltage and current sources
·Programmable attenuators




Pinout

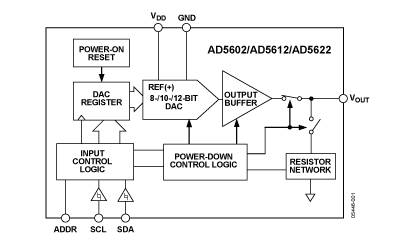

AD5612 Diagram

Connection Diagram




Specifications

Resolution (Bits) 10bit
DAC Update Rate 1.7MSPS
DAC Settling Time 6s
# DAC Outputs 1
DAC Type Voltage Out
DAC Input Format I2C/Ser 2-wire,Ser
Output FSR (Uni Vdd)
Ref Int/Ext Ext
Supply Vnom Single(+2.7),Single(+3),Single(+3.3),Single(+5)
Pwr Diss 500W
Package SC70


Parameter Rating
VDD to GND
Digital Input Voltage to GND
VOUT to GND
Operating Temperature Range
Extended Automotive (W, Y Versions)
Extended industrial (A, B Versions)
Storage Temperature Range
Maximum Junction Temperature
SC70 Package
JA Thermal Impedance
JC Thermal Impedance
Lead Temperature, Soldering
Vapor Phase (60 secs)
Infrared (15 secs)
ESD		 0.3 V to +7 V
0.3 V to VDD + 0.3 V
0.3 V to VDD + 0.3 V


40°C to +125°C
−40°C to + 85°C
65°C to +160°C
150°C

332/W
120/W

215
220
2.0 kV

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.




Description

The AD5602/AD5612/AD5622, a member of the nanoDAC? D/A converter family, is a single, 8-/10-/12-bit buffered voltage out DAC that operates from a single +2.7 V to +5.5 V supply consuming
