Features: `Dual channel
`16-bit resolution: AD5547
`14-bit resolution: AD5557
`2- or 4-quadrant, 4 MHz BW multiplying DAC
`±1 LSB DNL
`±1 LSB INL for AD5557, ±2 LSB INL for AD5547
`Operating supply voltage: 2.7 V to 5.5 V
`Low noise: 12 nV/Hz
`Low power: IDD = 10 A max
`0.5 s settling time
`Built-in RFB facilitates current-to-voltage conversion
`Built-in 4-quadrant resistors allow 0 V to 10 V, 0 V to +10 V, or ±10 V outputs
`2 mA full-scale current ± 20%, with VREF = 10 V
`Extended automotive operating temperature range: 40°C to +125°C
`Selectable zero-scale/midscale power-on presets
`Compact TSSOP-38 packageApplication·Automatic test equipment
·Instrumentation
·Digitally controlled calibration

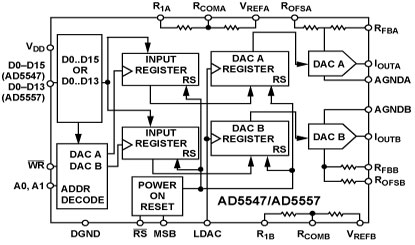

·Digital waveform generationPinout
Specifications
| Resolution (Bits) |
14bit |
| DAC Update Rate |
2MSPS |
| DAC Settling Time |
500ns |
| # DAC Outputs |
2 |
| DAC Type |
Current Out |
| DAC Input Format |
Par |
| Output FSR |
(-Vref),(Bip 2Vref),(Bip Vref),(Uni 2Vref),(Uni Vref),User Def. Range/Offset |
| Ref Int/Ext |
Ext |
| Supply Vnom |
Single(+5) |
| Package |
SOP |
DescriptionThe AD5547/AD5557 are dual precision, 16-/14-bit, multiplying, low power, current-output, parallel input, digital-to-analog converters. They are designed to operate from single +5 V supply with ±10 V
The AD5547/AD5557 are dual precision, 16-/14-bit, multiplying, low power, current-output, parallel input, digital-to-analog converters. They are designed to operate from single +5 V supply with ±10 V multiplying references for 4-quadrant outputs with up to 4 MHz bandwidth.
The built-in 4-quadrant resistors facilitate resistance matching and temperature tracking, which minimize the numbers of components needed for multiquadrant applications. In addition, the feedback resistor (RFB) simplifies the I-V conversion with an external buffer.
The AD5547/AD5557 are available in a compact TSSOP-38 package and operate at the extended automotive temperature range of 40°C to +125°C.
