AD5451

(T_A = +25°C unless otherwise noted)
V_DD to GND ........................................................................0.3 V to +7 V
V_REF, RFB to GND..............................................................12 V to +12 V
IOUT1 to GND ....................................................................0.3 V to +7 V
Input Current to any pin except supplies.................................... ±10 mA
Logic Inputs & Output3 ............................................-0.3V to V_DD +0.3 V
Operating Temperature Range
Industrial (Y Version) ................................................. 40°C to +125°C
Storage Temperature Range .......................................65°C to +150°C
Junction Temperature ............................................................... .+150°C
8 lead MSOP JA Thermal Impedance .......................................206°C/W
8 lead TSOT JA Thermal Impedance ........................................211°C/W
Lead Temperature, Soldering (10seconds) ..................................300°C

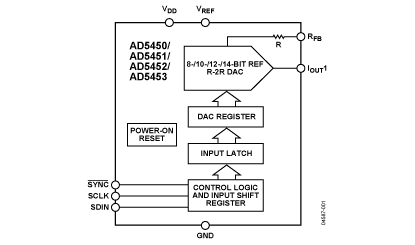

The AD5451 is a CMOS 10-bit Current Output digital-to-analog converter. This device operates from a +2.5 V to 5.5 V power supply, making it suited to battery powered applications and many other
