Features: +2.5 V to +5.5 V Supply Operation50MHz Serial Interface10MHz Multiplying Bandwidth±10V Reference Input8-Lead TSOT & MSOP PackagesPin Compatible 8, 10, 12 and 14 Bit Current Output DACsExtended Temperature range 40 to +125Guaranteed MonotonicFour Quadrant MultiplicationPower On Reset with brown out detect<5A typical Current ConsumptionApplicationPortable Battery Powered ApplicationsWaveform GeneratorsAnalog ProcessingInstrumentation ApplicationsProgrammable Amplifiers and AttenuatorsDigitally-Controlled CalibrationProgrammable Filters and OscillatorsComposite VideoUltrasoundGain, offset and Voltage TrimmingPinout
Specifications(TA = +25°C unless otherwise noted)
VDD to GND ........................................................................0.3 V to +7 V
VREF, RFB to GND..............................................................12 V to +12 V
IOUT1 to GND ....................................................................0.3 V to +7 V
Input Current to any pin except supplies.................................... ±10 mA
Logic Inputs & Output3 ............................................-0.3V to VDD +0.3 V
Operating Temperature Range
Industrial (Y Version) ................................................. 40°C to +125°C
Storage Temperature Range .......................................65°C to +150°C
Junction Temperature ............................................................... .+150°C
8 lead MSOP JA Thermal Impedance .......................................206°C/W
8 lead TSOT JA Thermal Impedance ........................................211°C/W
Lead Temperature, Soldering (10seconds) ..................................300°C
| Resolution (Bits) |
8bit |
| DAC Update Rate |
2.7MSPS |
| DAC Settling Time |
100ns |
| # DAC Outputs |
1 |
| DAC Type |
Current Out |
| DAC Input Format |
Ser,SPI |
| Output FSR |
(-Vref),(Bip Vref),(Uni Vref),User Def. Range/Offset |
| Ref Int/Ext |
Ext |
| Supply Vnom |
Single(+2.5),Single(+2.7),Single(+3),Single(+3.3),Single(+5) |
| Pwr Diss |
55W |
| Package |
SOT |

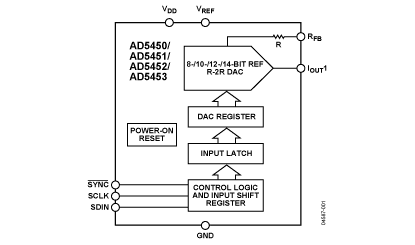

DescriptionThe AD5450/AD5451/AD5452/AD5453 are CMOS 8,10, 12 and 14-bit Current Output digital-to-analogconverters respectively.
These devices AD5450/AD5451/AD5452/AD5453 operate from a +2.5 V to 5.5 V power supply,making them suited to battery powered applicationsand many otherapplications.
These DACs AD5450/AD5451/AD5452/AD5453 utilize double buffered 3-wire serial interfacethat is compatible with SPITM, QSPITM, MICROWIRETMand most DSP interface standards.
On power-up, the internal shift register and latches arefilled with zeros and the DAC output is at zero scale.As a result of manufacture on a CMOS sub micronprocess, they offer excellent four quadrant multiplicationcharacteristics, with large signal multiplying bandwidthsof 10MHz.
The applied external reference input voltage (VREF)determines the full scale output current. An integratedfeedback resistor (RFB)provides temperature tracking andfull scale voltage output when combined with an externalCurrent to Voltage precision amplifie
The AD5450/AD5451/AD5452/AD5453 DACs areavailable in small 8-lead TSOT & MSOP packages.
AD5450 Data Sheet
