AD5425

2.5 V to 5.5 V Supply Operation50 MHz Serial Interface8-Bit (Byte Load) Serial Interface, 6 MHz Update Rate10 MHz Multiplying Bandwidth±10 V Reference InputLow Glitch Energy < 2 nV-sExtended Temperature Range 40to +12510-Lead MSOP PackageGuaranteed Monotonic4-Quadrant MultiplicationPower On Reset with Brownout DetectionLDACFunction0.4 A Typical Power Consumption

(T_A = 25, unless otherwise noted.)
V_DD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
V_REF, R_FB to GND . . . . . . . . . . . . . . . . . . . . . . 12 V to +12 V
I_OUT1, I_OUT2 to GND . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
Logic Inputs and Output2 . . . . . . . . . . . 0.3 V to VDD + 0.3 V
Operating Temperature Range
Extended Industrial (Y Version) . . . . . . . . . . . 40 to +125
Storage Temperature Range . . . . . . . . . . . . . 65 to +150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 150
10-lead MSOPJA Thermal Impedance . . . . . . . . . . . 206/W
Lead Temperature, Soldering (10 seconds) . . . . . . . . . 300
I_R Reflow, Peak Temperature (<20 seconds) . . . . . . . . 235

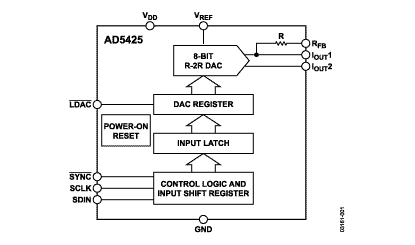

The AD5425 is a CMOS 8-bit current output digital-to-analogconverter that operates from a 2.5 V to 5.5 V power supply,making it suited to battery-powered applications and manyother applications.This DAC AD5425 utilizes a double buffered 3-wire serial interface thatis compatible with SPI®, QSPI™, MICROWIRE™, and mostDSP interface standards. In addition, an LDAC pin is provided,which allows simultaneous update in a multi-DAC configuration.On power-up, the internal shift register and latches are filledwith 0s and the DAC outputs are at 0 V.

As a result of processing on a CMOS submicron process, this DAC AD5425 offers excellent 4-quadrant multiplication characteristics,with large signal multiplying bandwidths of 10 MHz.The applied external reference input voltage (VREF) determinesthe full-scale output current. An integrated feedback resistor (RFB)provides temperature tracking and full-scale voltage outputwhen combined with anexternal I-to-V precision amplifier.The AD5425 DAC is available in a small 10-lead MSOP package.
