AD5415

Features: On-chip 4-quadrant resistors allow flexible output ranges10 MHz multiplying bandwidth50 MHz serial interface2.5 V to 5.5 V supply operation±10 V reference inputExtended temperature range: −40 to +12524-lead TSSOP packageGuaranteed monotonicPower-on resetDaisy-chain modeReadback fun...

product image

AD5415 Picture
See larger image
SeekIC No. : 004269291 Detail

AD5415: Features: On-chip 4-quadrant resistors allow flexible output ranges10 MHz multiplying bandwidth50 MHz serial interface2.5 V to 5.5 V supply operation±10 V reference inputExtended temperature range: ...

AD5415 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD5415
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

On-chip 4-quadrant resistors allow flexible output ranges10 MHz multiplying bandwidth50 MHz serial interface2.5 V to 5.5 V supply operation±10 V reference inputExtended temperature range: −40 to +12524-lead TSSOP packageGuaranteed monotonicPower-on resetDaisy-chain modeReadback function0.5 A typical current consumption




Application

Portable battery-powered applicationsWaveform generatorsAnalog processingInstrumentation applicationsProgrammable amplifiers and attenuatorsDigitally controlled calibrationProgrammable filters and oscillatorsComposite videoUltrasoundGain, offset, and voltage trimming





Pinout

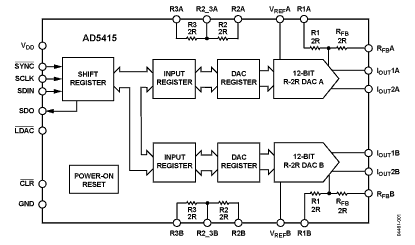

AD5415 Diagram

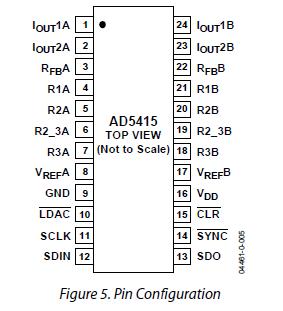

Connection Diagram




Specifications

Resolution (Bits) 12bit
DAC Update Rate 2.47MSPS
DAC Settling Time 120ns
# DAC Outputs 2
DAC Type Current Out
DAC Input Format Ser,SPI
Output FSR (-Vref),(Bip Vref),(Uni Vref),User Def. Range/Offset
Ref Int/Ext Ext
Supply Vnom Single(+2.7),Single(+3),Single(+3.3),Single(+5)
Pwr Diss 3.5W
Package SOP


VDD to GND−0.3 V to..................................................... +7 V
VREF, RFB to GND−12 V to............................................. +12 V
IOUT1, IOUT2 to GND..................................... −0.3 V to +7 V
Input Current to Any Pin except Supplies.....................±10 mA
Logic Inputs and Output1.....................− 0.3 V to VDD + 0.3 V
Operating Temperature Range.....................−40°C to +125°C
Extended (Y Version)
Storage Temperature Range.........................−65°C to +150°C
Junction Temperature.....................................................150°C
24-Lead TSSOP JA Thermal Impedance.....................128°C/W
Lead Temperature, Soldering (10 seconds)....................300°C
IR Reflow, Peak Temperature (<20 seconds)................... 235°C




Description

The AD54151 is a CMOS 12-bit, dual-channel, current output digital-to-analog converter. This device AD54151 operates from a 2.5 V to 5.5V power supply, making it suited to battery-powered appli-cations as well as many other applications.The applied external referenceinput voltage (VREF) determines the full-scale output current. An integrated feedback resistor (RFB)providestemperaturetracking and full-scale voltage output when combined with an external current-to-voltage precisionamplifier. In addition, this device AD54151 contains all the 4-quadrant resistors necessary for bipolar operation and otherconfiguration modes.

This DAC AD54151 utilizes a double-buffered 3-wire serial interface that is compatible with SPI®, QSPI™, MICROWIRE™, and most DSPinterface standards. In addition, a serial data out pin (SDO) allows for daisy-chaining when multiple packages are used. Datareadback allows the user to read the contents of the DAC register via the SDO pin. On power-up, the internal shift registerand latches are filled with zeros, and the DAC outputs are at zero scale. As a result of manufacture on a CMOS submi-cronprocess, this part offers excellent 4-quadrant multiplication characteristics, with large-signal multiplying bandwidths of 10MHz.
1US Patent Number 5,689,257.
