Features: `Guaranteed monotonic
`INL error: ±4 LSB max
`On-chip 1.25 V/2.5 V, 10 ppm/°C reference
`Temperature range: 40°C to +85°C
`Rail-to-rail output amplifier
`Power-down
`Package type: 100-lead CSPBGA (10 mm * 10 mm)
`User Interfaces:Serial (SPI-®/QSPI-™/MICROWIRE-™/DSP-compatible, featuring data readback)
`I2C-®compatibleApplication·Variable optical attenuators (VOA)
·Level setting (ATE)
·Optical micro-electro-mechanical systems (MEMS)
·Control systems
·InstrumentationPinout
SpecificationsAVDD to AGND.................................−0.3 V to +7 V
DVDD to DGND.................................−0.3 V to +7 V
Digital Inputs to DGND.......−0.3 V to DVDD + 0.3 V
Digital Outputs to DGND....−0.3 V to DVDD + 0.3 V
VREF to AGND.................................−0.3 V to +7 V
REFOUT to AGND.............................−0.3 V to +7 V
AGND to DGND.............................−0.3 V to +0.3 V
VOUTX to AGND. ................−0.3 V to AVDD + 0.3 V
Operating Temperature Range
Commercial (B Version).........−40°C to +85°C
Storage Temperature Range....−65°C to +150°C
Junction Temperature (TJ max)...................150°C
64-Lead LFCSP Package, JA.................22°C/W
52-lLad LQFP Package, JA....................38°C/W
Reflow Soldering Peak Temperature............230°C
Stresses above absolute maximum ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
| Resolution (Bits) |
14bit |
| DAC Update Rate |
125kSPS |
| DAC Settling Time |
8s |
| # DAC Outputs |
40 |
| DAC Type |
Voltage Out |
| DAC Input Format |
I2C/Ser 2-wire,Ser,SPI |
| Output FSR |
(Uni 2.5V),(Uni 2Vref),(Uni 5V),User Def. Range/Offset |
| Ref Int/Ext |
Int/Ext |
| Supply Vnom |
Single(+3),Single(+3.3),Single(+5) |
| Pwr Diss |
80mW |
| Package |
BGA,CSP |

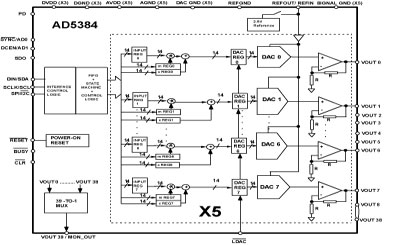

DescriptionThe AD5384 is a complete single-supply, 40-channel, 14-bit DAC available in a 100-lead CSPBGA package. All 40 channels have an on-chip output amplifier with rail-to-rail operation. The AD5384 includes an internal 1.25 V/2.5 V, 10 ppm/°C reference, an on-chip channel monitor function that multiplexes the analog outputs to a common MON_OUT pin for external monitoring, and an output amplifier boost mode that allows the amplifier slew rate to be optimized.
The AD5384 contains a serial interface compatible with SPI, QSPI, MICROWIRE, and DSP interface standards with interface speeds in excess of 30 MHz and an I2C-compatible interface supporting 400 kHz data transfer rate. An input register followed by a DAC register provides double buffering, allowing the DAC outputs to be updated independently or simultaneously. using theLDAC input. Each channel has a programmable gain and offset adjust register letting the user fully calibrate any DAC channel. Power consumption is typically 0.25 mA/channel with boost mode off.
AD5384 Data Sheet
