Features: Guaranteed monotonic INL error: ±4 LSB max On-chip 1.25 V/2.5 V, 10 ppm/ reference Temperature range: 40 to +85 Rail-to-rail output amplifier Power-down mode Package type: 100-lead LQFP (14 mm * 14 mm) User Interfaces: ParallelSerial (SPI®/QSPI™/MICROWIRE™/DSP compatible,...

product image

AD5382 Picture
See larger image
SeekIC No. : 004269230 Detail

AD5382: Features: Guaranteed monotonic INL error: ±4 LSB max On-chip 1.25 V/2.5 V, 10 ppm/ reference Temperature range: 40 to +85 Rail-to-rail output amplifier Power-down mode Package type: 100-lead LQFP (1...

AD5382 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD5382
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Guaranteed monotonic
INL error: ±4 LSB max
On-chip 1.25 V/2.5 V, 10 ppm/ reference
Temperature range: 40 to +85
Rail-to-rail output amplifier
Power-down mode
Package type: 100-lead LQFP (14 mm * 14 mm)
User Interfaces:
Parallel
Serial (SPI®/QSPI™/MICROWIRE™/DSP compatible,
featuring data readback)
I2C® compatible




Application

Variable optical attenuators (VOA)
Level setting (ATE)
Optical micro-electro-mechanical systems (MEMS)
Control systems
Instrumentation




Pinout

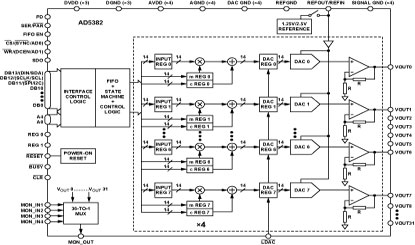

AD5382 Diagram




Specifications

Resolution (Bits) 14bit
DAC Update Rate 125kSPS
DAC Settling Time 8s
# DAC Outputs 32
DAC Type Voltage Out
DAC Input Format Par,Ser,SPI
Output FSR (Uni 2.5V),(Uni 2Vref),(Uni 5V),User Def. Range/Offset
Ref Int/Ext Int/Ext
Supply Vnom Single(+3),Single(+3.3),Single(+5)
Package QFP





Description

The AD5382 is a 32-channel, 14-Bit DAC and is available in a 14 mm x 14 mm 100-lead LQFP package. It operates from a single 3 V or 5 V supply. Programmable gain (m) and offset (c) are provided per
