AD53042

Features: 2 V to +7 V Input Voltage RangeLow VIN Bias Current (<100 nA)Up to 5 V/ns Input Signal TrackingLow Dispersion of 6100 ps28-Lead PLCC PackageApplicationAutomatic Test EquipmentSemiconductor Test SystemsBoard Test SystemsPinoutSpecificationsPower Supply Voltage+VS to GND . . . . . . . ....

product image

AD53042 Picture
See larger image
SeekIC No. : 004269043 Detail

AD53042: Features: 2 V to +7 V Input Voltage RangeLow VIN Bias Current (<100 nA)Up to 5 V/ns Input Signal TrackingLow Dispersion of 6100 ps28-Lead PLCC PackageApplicationAutomatic Test EquipmentSemiconduc...

AD53042 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD53042
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

2 V to +7 V Input Voltage RangeLow VIN Bias Current (<100 nA)Up to 5 V/ns Input Signal TrackingLow Dispersion of 6100 ps28-Lead PLCC Package




Application

Automatic Test EquipmentSemiconductor Test SystemsBoard Test Systems

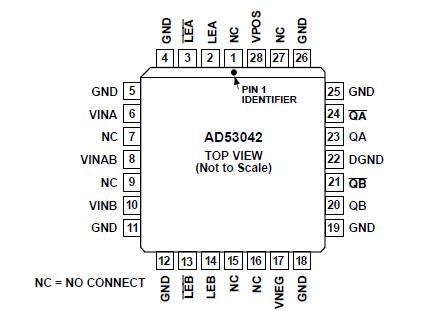

Pinout




Specifications

Power Supply Voltage
+VS to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..  +12 V
VS to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 V
+VS to VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. +17 V
Inputs
VIN, VA, VB . . . . . . . . . . . . . . ... +VS 13.5 V, VS + 13.7 V
LEA, LEA, LEB, LEB . . . . . . . .. . . .. .  +VS 14 V, VS +10 V
Currents
+VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 mA
VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 75 mA
QA, QA, QB, QB . . . . . . . . . . . . . . . . . .. . . 40 mA to +2 mA
Environmental
Operating Temperature (Ambient) . . . . . . . ..  0°C to +70°C
Storage Temperature . . . . . . . . . . . . . . . . 65°C to +125°C
Lead Temperature (Soldering, 20 sec) . . . . . . . . . . .+300°C


Description

The AD53042 is an ultrahigh speed window comparatorwith latch. It uses a high speed monolithic process to providehigh dc accuracy without sacrificing input voltage range.On-chip connection of the common input eliminates thecontributions of a second bondingpad and package pin tothe input capacitance, resulting in a maximum inputcapacitance of 2 pF.

The AD53042 employs a high precision differential inputstage with a common mode range of 9 V. Its complementarydigital outputsare fully ECL-compatible. The output stage iscapable of driving a 50  Connection Diagram line terminated to 2 V. The devicealso provides a latchfunction, allowing operation in track-holdmode and can also be used to generate hysteresis.
