Product Details

Description



Features:

AD5304
Four Buffered 8-Bit DACs in 10-Lead microSOIC
AD5314
Four Buffered 10-Bit DACs in 10-Lead microSOIC
AD5324
Four Buffered 12-Bit DACs in 10-Lead microSOICLow Power Operation: 500  Connection DiagramA @ 3 V, 600  Connection DiagramA @ 5 V2.5 V to 5.5 V Power SupplyGuaranteed Monotonic ByDesign Over All CodesPower-Down to 80 nA @ 3 V, 200 nA @ 5 VDouble-Buffered Input LogicOutput Range: 0VREF Power-On-Reset to Zero VoltsSimultaneous Update of Outputs (LDAC Function)Low Power, SPI™, QSPI™, MICROWIRE™, andDSP-Compatible 3-Wire Serial InterfaceOn-Chip Rail-toRail Output Buffer AmplifiersTemperature Range 40 to +105





Application

Portable Battery-Powered InstrumentsDigital Gain and Offset AdjustmentProgrammable Voltage and Current SourcesProgrammable AttenuatorsIndustrial Process Control




Pinout

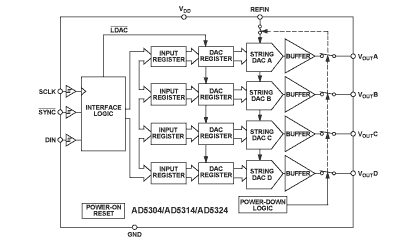

  Connection Diagram

AD5304 Diagram




Specifications

(TA = 25°C unless otherwise noted)
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
Digital Input Voltage to GND . . . . . . . 0.3 V to VDD + 0.3 V
Reference Input Voltage to GND . . . . 0.3 V to VDD + 0.3 V
VOUTAD to GND . . . . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . 40 to +105
Storage Temperature Range . . . . . . . . . . . . 65
to +150Junction Temperature (TJ max) . . . . . . . . . . . . . . . . . . 150
10-Lead microSOIC Package
Power Dissipation . . . . . . . . . . . . . . . . . . (TJ max TA)/JA
JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . 206/W
JC Thermal Impedance . . . . . . . . . . . . . . . . . . . . . 44/W
Reflow Soldering
Peak Temperature . . . . . . . . . . . . . . . . . . . . . 220 +5/0
Time at Peak Temperature . . . . . . . . . . . . 10 sec to 40 sec


Resolution (Bits) 8bit
DAC Update Rate 167kSPS
DAC Settling Time 6s
# DAC Outputs 4
DAC Type Voltage Out
DAC Input Format Ser,SPI
Output FSR (Uni Vref)
Ref Int/Ext Ext
Supply Vnom Single(+2.5),Single(+2.7),Single(+3),Single(+3.3),Single(+5)
Pwr Diss 4.5mW
Package SOIC,SOP





Description

The AD5304/AD5314/AD5324 are quad 8-, 10- and 12-bitbuffered voltage output DACs in a 10-lead microSOIC packagethat operate from a single 2.5 V to 5.5 V supply consuming500 A at 3 V. Their on-chip output amplifiers allow rail-torailoutput swing to be achieved with a slew rate of 0.7 V/s.A 3-wire serial interface is used which operates at clock ratesup to 30 MHz and is compatible with standard SPI, QSPI,MICROWIRE and DSP interface standards.

The references for the four DACs are derived from one referencepin. The outputs of all DACs may be updated simultaneouslyusing the softwareLDAC function. The parts incorporate apower-on-reset circuit that ensures that the DAC outputs powerup to zero volts and remain there until a valid write takes placeto the device. The parts contain a power-down feature thatreduces the currentconsumption of the device to 200 nA @ 5 V(80 nA @ 3 V).

The low power consumption of these parts in normal operationmakes them ideally suited to portable battery-operated equipment.The power consumption is 3 mW at 5 V, 1.5 mW at 3 V, reducingto 1 W in power-down mode.
