AD404M42VS

Features:

• Single 3.3V( %) only power supply
• High speed t_RAC acess time: 50/60ns
• Low power dissipation
- Active mode : 432/396 mW (Mas)
- Standby mode: 0.54 mW (Mas)
• Extended - data - out(EDO) page mode access
• I/O level: CMOS level (Vcc = 3.3V)
• 2048 refresh cycle in 32 ms(Std.) or 128 ms(S-version)
• 4 refresh modesh:
- RAS only refresh
- CAS - before - RAS refresh
- Hidden refresh
- Self-refresh(S-version)

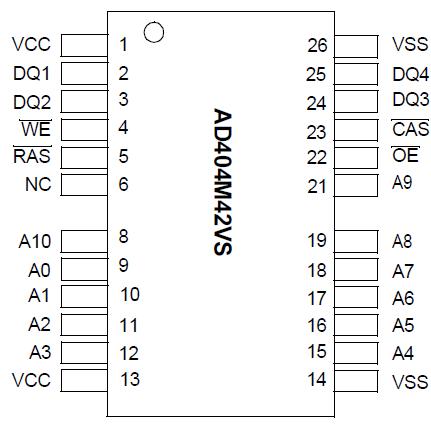

Pinout




Specifications

Parameter	Symbol	Value	Unit
Voltage on any pin relative to Vss	VT	-0.5 to + 4.6	V
Supply voltage relative to Vss	VCC	-0.5 to + 4.6	V
Short circuit output current	IOUT	50	mA
Power dissipation	PD	1.0	W
Operating temperature	TOPT	0 to + 70
Storage temperature	TSTG	-55 to + 125

Description

The AD404M42VS device CMOS Dynamic RAM organized as 4,194,304 words x 4 bits with extended data out access mode. AD404M42VS is fabricated with an advanced submicron CMOS technology and designed to operate from a single 3.3V oniy power supply. Low voltage operation is more suitable to be used on battery backup, portable electronic application. lt is packaged in JEDEC standard 26/24-pin plastic SOJ or TSOP(II).
