AD1836

Features: `5 V Multichannel Audio System`Accepts 16-/18-/20-/24-Bit Data`Supports 24 Bits and 96 kHz Sample Rate`Multibit Sigma-Delta Modulators with Data Directed`Scrambling`Data-Directed Scrambling ADCs and DACs-Least`Sensitive to Jitter`Differential Output for Optimum Performance`ADCs: 92 dB TH...

product image

AD1836 Picture
See larger image
SeekIC No. : 004268333 Detail

AD1836: Features: `5 V Multichannel Audio System`Accepts 16-/18-/20-/24-Bit Data`Supports 24 Bits and 96 kHz Sample Rate`Multibit Sigma-Delta Modulators with Data Directed`Scrambling`Data-Directed Scramblin...

AD1836 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD1836
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`5 V Multichannel Audio System
`Accepts 16-/18-/20-/24-Bit Data
`Supports 24 Bits and 96 kHz Sample Rate
`Multibit Sigma-Delta Modulators with Data Directed
`Scrambling
`Data-Directed Scrambling ADCs and DACs-Least
`Sensitive to Jitter
`Differential Output for Optimum Performance
`ADCs: 92 dB THD + N, 105 dB SNR and Dynamic Range
`DACs: 95 dB THD + N, 108 dB SNR and Dynamic Range
`On-Chip Volume Control with "Autoramp" Function
`Programmable Gain Amplifier for ADC Input
`Hardware and Software Controllable Clickless Mute
`Digital De-Emphasis Processing
`Supports 256  fS, 512  fS, or 768  fS Master Clock
`Power-Down Mode Plus Soft Power-Down Mode
`Flexible Serial Data Port with Right-Justified, Left-
`Justified, I2S-Compatible and DSP Serial Port Modes
`TDM Interface Mode Supports 8 In/8 Out Using a
`Single SHARC® SPORT
`52-Lead MQFP (PQFP) Plastic Package


Application

·Home Theatre Systems
·Automotive Audio Systems
·DVD
·Set-Top Boxes
·Digital Audio Effects Processors


Pinout

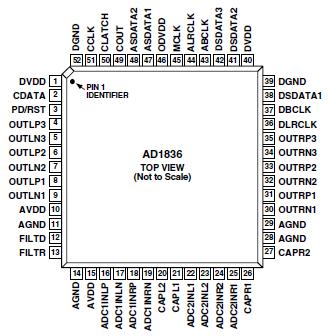

Connection Diagram


Specifications

Parameter Min Max Unit
Power Supplies
Analog (AVDD)		 0.3 6.0 V
Digital (DVDD) 0.3 6.0 V
Input Current
(Except Supply Pins)		   ±20
 mA
Analog Input Voltage(Signal Pins) 0.3 AVDD + 0.3 V
Digital Input Voltage (Signal Pins) 0.3 DVDD + 0.3 V
Ambient Temperature(Operating) 40 +85 °C
ESD Tolerance 1   kV
(Human Body Model, Method 3015.2, MIL-STD-883B)






Description

The AD1836 is a high-performance, single-chip codec providing three stereo DACs and two stereo ADCs using ADI's patented multibit sigma-delta architecture. An SPI port is included, allowing a microcontroller to adjust volume and many other parameters. The AD1836 operates from a 5 V supply, with provision for a separate output supply to interface with low-voltage external circuitry. The AD1836 is available in a 52-lead MQFP (PQFP) package.
