AD1835A

Features: `5 V Stereo Audio System with 3.3 V Tolerant Digital Interface`Supports up to 96 kHz Sample Rates`192 kHz Sample Rate Available on 1 DAC`Supports 16-/20-/24-Bit Word Lengths`Multibit - Modulators withPerfect Differential Linearity Restoration forReduced Idle Tones and Noise Floor`Data Di...

product image

AD1835A Picture
See larger image
SeekIC No. : 004268328 Detail

AD1835A: Features: `5 V Stereo Audio System with 3.3 V Tolerant Digital Interface`Supports up to 96 kHz Sample Rates`192 kHz Sample Rate Available on 1 DAC`Supports 16-/20-/24-Bit Word Lengths`Multibit - Mod...

AD1835A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD1835A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`5 V Stereo Audio System with 3.3 V Tolerant Digital Interface
`Supports up to 96 kHz Sample Rates
`192 kHz Sample Rate Available on 1 DAC
`Supports 16-/20-/24-Bit Word Lengths
`Multibit - Modulators with
Perfect Differential Linearity Restoration for
Reduced Idle Tones and Noise Floor
`Data Directed Scrambling DACs-Least
Sensitive to Jitter
`Differential Output for Optimum Performance
`ADCs: 95 dB THD + N, 105 dB SNR, and Dynamic Range
`DACs: 95 dB THD + N, 108 dB SNR, and Dynamic Range
`On-Chip Volume Controls per Channel with 1024-Step Linear Scale
`DAC and ADC Software Controllable Clickless Mutes
`Supports 256 * fS, 512 * fS, and 768 * fS Master
Mode Clocks
`Power-Down Mode Plus Soft Power-Down Mode
`Flexible Serial Data Port with Right-Justified, Left-
Justified, I2S Compatible, and DSP Serial Port Modes
`TDM Interface Mode Supports 8-In/8-Out Using a
`Single SHARC® SPORT
`52-Lead MQFP Plastic Package
`Digital De-emphasis Processing




Application

DVD Video and Audio Players
Home Theater Systems
Automotive Audio Systems
Audio/Visual Receivers
Digital Audio Effects Processors

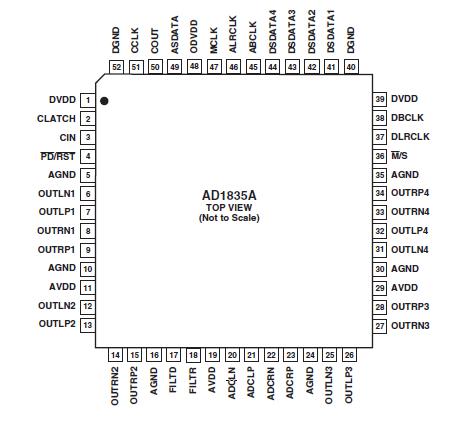

Pinout

Connection Diagram

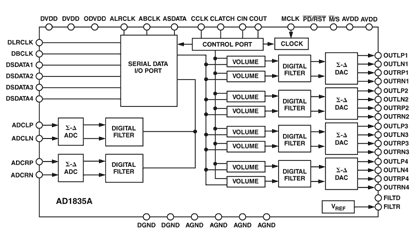

AD1835A Diagram




Specifications

(TA = 25°C, unless otherwise noted.)
AVDD, DVDD, ODVDD to AGND, DGND . . 0.3 V to +6.0 V
AGND to DGND . . . . . . . . . . . . . . . . . . . 0.3 V to +0.3 V
Digital I/O Voltage to DGND . . .0.3 V to ODVDD + 0.3 V
Analog I/O Voltage to AGND . . . 0.3 V to AVDD + 0.3 V
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . 40°C to +85°C

*Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of thedevice at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability



# ADC 2
# DAC 8
ADC Dynamic Range (dB) 105dB
ADC SNR (dB) 105dB
DAC Dynamic Range (dB) 108dB
DAC SNR (dB) 108dB
THD+N (dB) ADC: -95,DAC: -95
Product Description 96 kHz, 24-bit Sigma Delta CODEC
