AD10410

The AD10410 is a full channel ADC solution with on-module signal conditioning for improved dynamic performance and
fully matched channel-to-channel performance. The module includes two wide dynamic range AD9240 ADCs. Each AD9240 has a dc-coupled amplifier front end including a low distortion, high bandwidth amplifier, providing a high input impedance and gain, and driving a single to differential amplifier. The AD9240s have on-chip track-and- hold cirucutry and utilize an innovative multipass architecture to achieve 14-bit,10MSPS performance. The AD10410 uses innovative highdensity circuit design and laser-trimmed thin-film resistor networks to achieve exceptional matching and performance while still maintaining excellent isolation, and providing for significant board area savings.

The AD10410 operates with +/- 5.0V for the Analog signal conditioning with a separate +5.0V/3.3V supply for the digital output phase. Each channel is completely independent allowing operation with independent Encode and Analog Inputs. The AD10410 also offers the user a choice of Analog Input Signal ranges to further minimize additional external signal conditioning, while still remaining general-purpose.

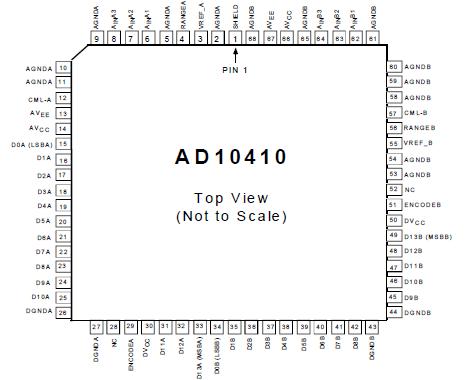

The AD10410 is packaged in a 68-lead Ceramic Gull Wing Package, footprint compatible with the earlier generation AD10242 (12-bit, 40 MSPS) and AD10265 (12-bit, 65MSPS).

Manufacturing is done on Analog Devices, Inc. Mil-38534 Qualified Manufacturers Line (QML) and components are available up to Class-H (-55 to 125C).
