Product Details

Description



Features:

• Devices QML Qualified in Accordance with MIL-PRF-38535
• Detailed Electrical and Screening Requirements are Contained in
SMD# 5962-96712 and Intersil's QM Plan
• 1.25 Micron Radiation Hardened SOS CMOS
• Total Dose   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  >300K RAD (Si)
• Single Event Upset (SEU) Immunity: <1 x 10-10 Errors/Bit/Day (Typ)
• SEU LET Threshold . . . . . . . . . . . . . . . . . . . . . . . >100 MEV-cm2/mg
• Dose Rate Upset  . . . . . . . . . . . . . . . .  >1011 RAD (Si)/s, 20ns Pulse
• Dose Rate Survivability. . . . . . . . . . .  >1012 RAD (Si)/s, 20ns Pulse
• Latch-Up Free Under Any Conditions
• Military Temperature Range . . . . . . . . . . . . . . . . . . -55oC to +125oC
• Significant Power Reduction Compared to ALSTTL Logic
• DC Operating Voltage Range  . . . . . . . . . . . . . . . . . . . .  4.5V to 5.5V
• Input Logic Levels
   - VIL = 0.8V Max
   - VIH = VCC/2 Min
• Input Current 1µA at VOL, VOH
• Fast Propagation Delay . . . . . . . . . . . . . . . . .  14ns (Max), 9ns (Typ)

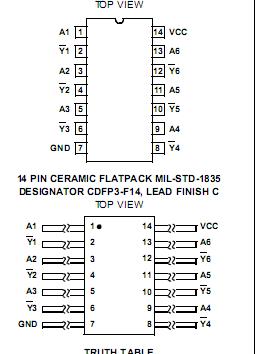

Pinout

Connection Diagram




Description

The Intersil ACTS04MS is a Radiation Hardened Hex Inverter.

The ACTS04MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of radiation hardened, high-speed, CMOS/SOS Logic Family.

The ACTS04MS is supplied in a 14 lead Ceramic Flatpack (K suffix) or a Ceramic Dual-In-Line Package (D suffix).
