ACTQ16541

Utilizes NSC FACT Quiet Series technology
Guaranteed simultaneous switching noise level anddynamic threshold performance
Separate control logic for each byte
16-bit version of the 'ACTQ541
Outputs source/sink 24 mA

Supply Voltage (V_CC)             −0.5V to +7.0V
DC Input Diode Current (I_IK)
V_I = −0.5V                                         −20 mA
V_I = V_CC + 0.5V                                 +20 mA
DC Output Diode Current (I_OK)
V_O = −0.5V                                        −20 mA
V_O = V_CC + 0.5V                                +20 mA
DC Output Voltage (V_O) −0.5V to V_CC + 0.5V
DC Output Source/Sink Current (I_O) ±50 mA
DC V_CC or Ground Current
per Output Pin                                   ±50 mA
Junction Temperature
CDIP                                                    +175
Storage Temperature             −65to +150

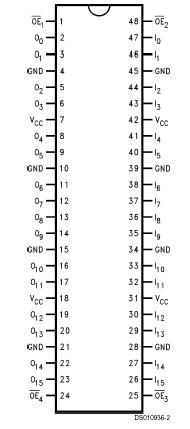

The 'ACTQ16541 contains sixteen non-inverting buffers withTRI-STATE outputs designed to be employed as a memoryand address driver, clock driver, or bus oriented transmitter/receiver. The device is byte controlled. Each byte has separateTRI-STATE control inputs which can be shorted togetherfor full 16-bit operation.
The 'ACTQ16541 utilizes NSC Quiet Series technology toguarantee quiet output switching and improved dynamicthreshold performance. FACT Quiet Series™ featuresGTO™ output control for superior performance.
