Product Details

Description



Features:

` Greater than 90% Efficiency
` Adjustable Output Voltage Up to 12V
` Internal 14V Power MOSFET
` Two Peak Current Options:
` ACT6390: 1.7A, 0.2
` ACT6391: 2.5A, 0.15
` Selectable 700kHz/1.3MHz Frequency
` Integrated Over-Voltage Protection (OVP)
` Programmable Soft-Start Function
` Thermal Shutdown
` Cycle-by-Cycle Over-Current Protection
` Small MSOP-8 Package


Application

· TFT LCD Monitors
· Battery-Powered Equipment
· Set-Top Boxes
· DSL and Cable Modems and Rout

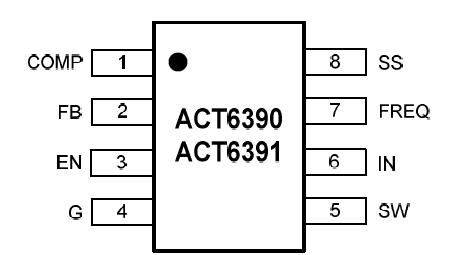

Pinout

Connection Diagram


Specifications

PARAMETER VALUE UNIT
SW to G -0.3 to 14 V
IN, EN, FB, FREQ, COMP to G -0.3 to 6 V
SS to G -0.3 to VIN + 0. V
Continuous SW Current Internally Limited A
Junction to Ambient Thermal Resistance (JA) 200 °C/W
Maximum Power Dissipation 0.5 W
Operating Junction Temperature -40 to 150 °C
Storage Temperature -55 to 150 °C
Lead Temperature (Soldering, 10 sec) 300 °C



Description

The ACT6390/ACT6391 are high-performance, fixed-frequency, current-mode PWM step-up DC/DC converters that incorporate internal power MOSFETs. The ACT6390 includes an integrated 0.2 power MOSFET that supports peak currents of up to 1.7A, while the ACT6391's integrated 0.15 power MOSFET supports currents of up to 2.5A.

The ACT6390 and ACT6391 both utilize simple external loop compensation and a pin-selectable fixed-frequency of either 700kHz or 1.3MHz, allowing optimization between component size, cost, and AC performance across a wide range of applications. Additional functions include an externally programmable soft-start function for easy inrush current control, internal over-voltage protection (OVP), cycle-by-cycle current limit protection, and thermal shutdown.

Both the ACT6390 and the ACT6391 are available in the small 8-pin MSOP-8 package.
