Features: • MIL-STD-1553 Compatible• 1.25 Megabit/sec Maximum Data Rate• Sync Identification and Lock-in• Clock Recovery• Manchester II Encode / Decode• Separate Encoder and Decoder Sections• Low Operating Power• Military Temperature Range -55°C to +...
ACT15530: Features: • MIL-STD-1553 Compatible• 1.25 Megabit/sec Maximum Data Rate• Sync Identification and Lock-in• Clock Recovery• Manchester II Encode / Decode• Separate ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter | Min | Max | Units |
VDD | 7 | 7 | V |
Input Voltage | Vss - 0.3 | VDD+ 0.3V | V |
Operating Temperature | -55 | +125 | °C |
Storage Temperature | -65 | +150 | °C |

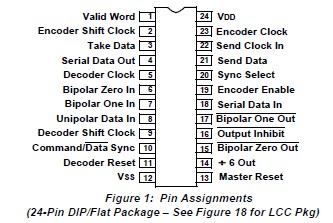

The ACT15530 is a high performance CMOS integrated circuit used to implement MIL-STD-1553 and similar Manchester II encoded, time division multiplexed, serial data protocols. The device is divided into two independent sections, encoder and decoder, with a common master reset. The function of the encoder section is to produce the sync pulse and parity bit, and encode the data bits. The decoder section recognizes the sync pulse, decodes the data bits and checks for parity.
The ACT15530 is fully guaranteed to support the 1 MHz data rate of MIL-STD-1553 over the full temperature and supply voltage ranges. The device interfaces with CMOS, TTL or N-Channel support circuitry and operates from a standard 5 volt supply. The circuit can also be used in many party line digital data communications applications where high reliability command and control signals are required. Using Aeroflex transceivers products (4400 Series) the Bit Error Rates (BER) and Word Error Rates (WER) of MIL-STD-1553 can be achieved (Refer to MIL-STD-1553 Multiplex Applications Handbook "MIL-HDBK-1553").
