Features:

• Available in dual, triple and quad
   channel configurations
• Bi-directional
• Wide supply voltage range
   3.0V to 5.5V
• High-speed: 15 MBd typical,
   10 MBd minimum
• 10kV/µs minimum Common Mode
   Rejection (CMR) at Vcm = 1000 V
• LSTTL/TTL compatible
• Safety and regulatory approvals
   (Pending)
     2500Vrms for 1 min per UL1577
     CSA Component Acceptance
     IEC/EN/DIN EN 60747-5-2
• 16 Pin narrow-body SOIC package
   for triple and quad channel
• -40 to 100°C temperature range


Application

• Full duplex communication
• Isolated line receiver
• Computer-peripheral interfaces
• Microprocessor system interfaces
• Digital isolation for A/D and D/A
   conversion
• Switching power supply
• Instrument input/output isolation
• Ground loop elimination
• Pulse transformer replacement


Pinout

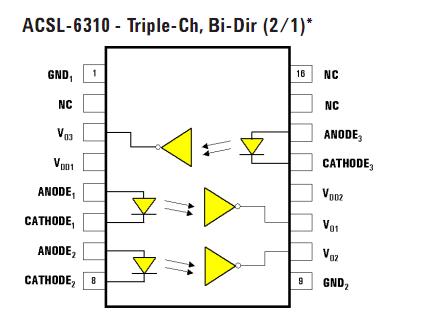

Connection Diagram


Specifications

Parameter
Symbol
Min.
Max.
Units
Storage Temperature
Ts
-55
125
°C
Operating Temperature
TA
-40
100
°C
Supply Voltage(1 Minute Maximum)
VDD1,VDD2
7
V
Reverse Input Voltage (Per Channel)
VR
5
V
Output Voltage (Per Channel)
VO
7
V
Average Forward InputCurrent[1] (PerChannel)
IF
15
mA
Output Current (Per Channel)
IO
50
mA
Input Power Dissipation[2] (Per Channel)
P1
27
mW
Output Power Dissipation[2] (Per Channel)
PO
60
mW



Description

ACSL-6xx0 are truly isolated, multi-channel and bi-directional, high-speed optocouplers. Integration of multiple optocouplers in monolithic form is achieved through patented process technology. These devices provide full duplex and bi-directional isolated data transfer and communication capability in compact surface mount packages. Available in 15 Mbd speed option and wide supply voltage range.

These high channel density make ACSL-6xx0 ideally suited to isolating data conversion devices, parallel buses and peripheral interfaces.

ACSL-6xx0 are available in 8-pin and 16pin narrow-body SOIC package and are specified over the temperature range of -40°C to +100°C.
