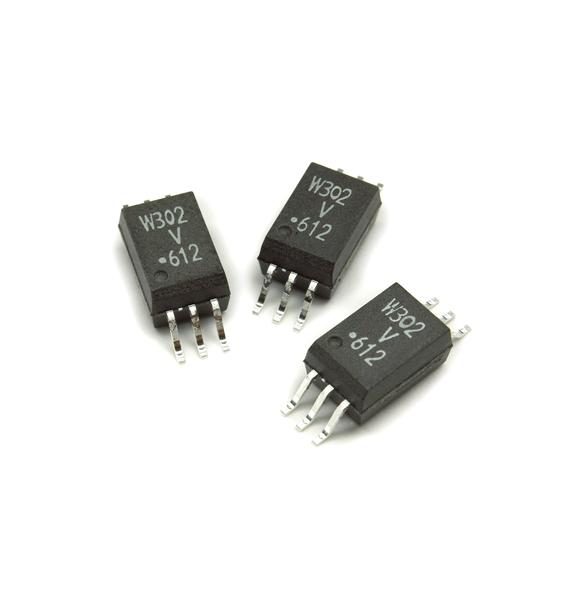

ACPL-W302-000E

Maximum Continuous Output Current :
Minimum Operating Temperature : - 40 C
Package / Case : SO-6 Stretched
Packaging : Tube
Isolation Voltage : 3750 Vrms
Maximum Forward Diode Voltage : 1.8 V
Maximum Reverse Diode Voltage : 5 V
Maximum Power Dissipation : 250 mW
Maximum Operating Temperature : + 100 C
Output Type : Open Collector
Maximum Forward Diode Current : 12 mA
Maximum Propagation Delay Time : 700 ns


Description

The ACPL-W302 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving small or medium power IGBTs.



Parameters:

Technical/Catalog Information	ACPL-W302-000E
Vendor	Avago Technologies US Inc.
Category	Isolators
Mounting Type	Surface Mount
Package / Case	6-SOIC
Isolation Voltage	3750Vrms
Configuration	1, One Direction
Input Type	DC
Output Type	Push-Pull, Totem-Pole
Data Rate	-
Current - Output/Channel	400mA
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ACPL W302 000E ACPLW302000E
