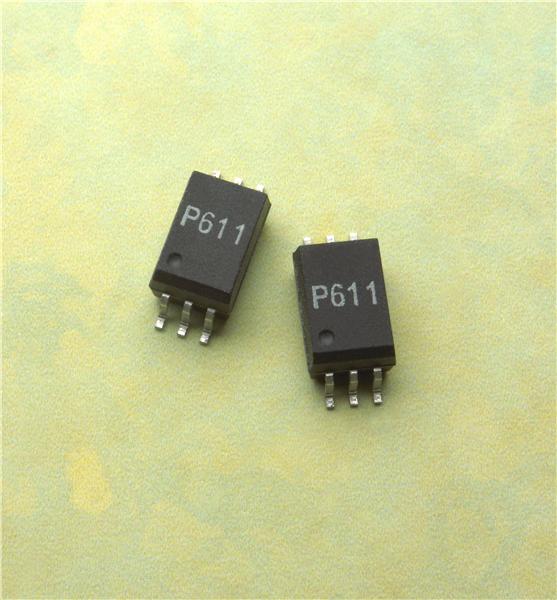

ACPL-P611-000E

Current Transfer Ratio :
Maximum Input Diode Current :
Maximum Reverse Diode Voltage : 5 V
Minimum Operating Temperature : - 40 C
Packaging : Tube
Maximum Operating Temperature : + 85 C
Maximum Baud Rate : 10 MBps
Maximum Power Dissipation : 85 mW
Maximum Forward Diode Voltage : 1.75 V
Package / Case : SO-6


Description

The ACPL-W611/ACPL-P611 optocoupler is an optically coupled digital gate that combines a GaAsP light emitting diode and an integrated high gain photo detector. The output of the detector IC is an open collector Schottky clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 10,000 V/s for the ACPL-W611. This unique design provides maximum ac and dc circuit isolation while achieving TTL compatibility. The optocoupler ac and dc operational parameters are guaranteed from -40°C to 85°C allowing trouble-free system performance.

The ACPL-W611/ACPL-P611 is suitable for high speed logic interfacing, input/output buffering, as line receivers in environments that conventional line receivers cannot tolerate and are recommended for use in extremely high ground or induced noise environments.


Parameters:

Technical/Catalog Information	ACPL-P611-000E
Vendor	Avago Technologies US Inc.
Category	Isolators
Mounting Type	Surface Mount
Package / Case	6-SOIC
Isolation Voltage	3750Vrms
Configuration	1, One Direction
Input Type	DC
Output Type	Open Collector
Data Rate	10Mbs
Current - Output/Channel	50mA
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ACPL P611 000E ACPLP611000E
