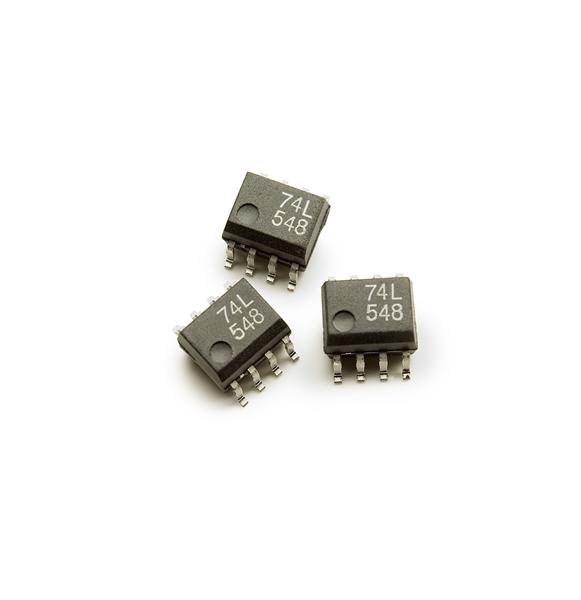

ACPL-074L-000E

Maximum Reverse Diode Voltage :
Maximum Input Diode Current :
Maximum Power Dissipation :
Current Transfer Ratio :
Maximum Forward Diode Voltage : 1.8 V
Minimum Operating Temperature : - 40 C
Packaging : Tube
Package / Case : SOIC-8
Maximum Baud Rate : 15 MBps
Maximum Operating Temperature : + 105 C


Specifications

• Operate at wide supply voltages and temperature.
• Output goes low when the power is loss - to prevent any output glitch at the recovery of power supply.
• Small footprint- save PCB board space.
• Excellent speed performance.
• Low Idd2: reduces power consumption.
• CMOS output- eliminate the need of output pull-up resistors.

Description

The dual-channel  ACPL-074L digital optocouplers have a 15MBd minimum data rate.

The digital optocouplers ACPL-074L utilize the latest CMOS IC technology to achieve outstanding high speed performance with very low power consumption.

The basic building blocks of the ACPL-074L include  high speed LEDs and CMOS detector ICs. Each detector incorporates an integrated photodiode, a high speed transimpedance amplifier, and a voltage comparator with an output driver.

ACPL-074L optocouplers are available in the SOIC-8 package style.

Avago also offers the same performance in the single channel ACPL-071L and ACPL-M75L.
