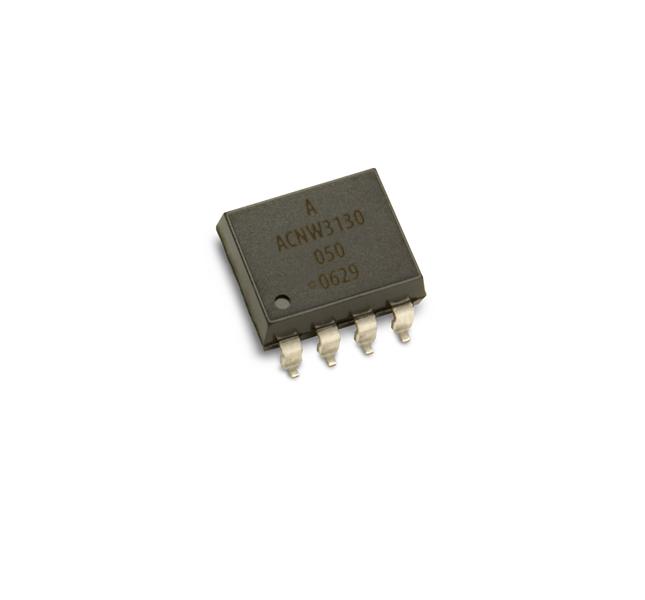

ACNW3130-000E

Maximum Continuous Output Current :
Minimum Operating Temperature : - 40 C
Packaging : Tube
Maximum Propagation Delay Time : 500 ns
Maximum Forward Diode Current : 16 mA
Maximum Operating Temperature : + 100 C
Output Type : Open Collector
Maximum Power Dissipation : 295 mW
Package / Case : DIP-8
Maximum Forward Diode Voltage : 1.95 V
Isolation Voltage : 5000 Vrms
Maximum Reverse Diode Voltage : 3 V


Description

TThe ACNW3130 contains a AlGaAs LED. The LED is optically coupled to an integrated circuit with a power output stage. These optocouplers ACNW3130 are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by these optocouplers make them ideally suited for directly driving IGBTs with ratings up to 1200 V/100 A. For IGBTs with higher ratings, the ACPL-3130 series can be used to drive a discrete power stage which drives the IGBT gate. The ACNW3130 has an insulation voltage of V_IORM = 1414 V_peak in the IEC/EN/DIN EN 60747-5-2.
