ACD2204

Features: • Integrated Downconverter• Integrated Dual Synthesizer• 256 QAM Compatibility• Single +5 V Power Supply Operation• Low Noise Figure: 8 dB• High Conversion Gain: 31 dB• Low Distortion: -53 dBc• Three-Wire Interface• Small Size• ...

product image

ACD2204 Picture
See larger image
SeekIC No. : 004266994 Detail

ACD2204: Features: • Integrated Downconverter• Integrated Dual Synthesizer• 256 QAM Compatibility• Single +5 V Power Supply Operation• Low Noise Figure: 8 dB• High Convers...

ACD2204 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ACD2204
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Integrated Downconverter
• Integrated Dual Synthesizer
• 256 QAM Compatibility
• Single +5 V Power Supply Operation
• Low Noise Figure: 8 dB
• High Conversion Gain: 31 dB
• Low Distortion: -53 dBc
• Three-Wire Interface
• Small Size
• -40 °C to +85 °C


Application

• Set Top Boxes
• CATV Video Tuners
• Digital TV Tuners
• CATV Data Tuners
• Cable Modems

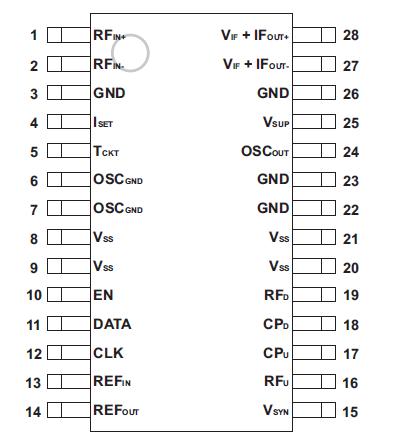

Pinout

Connection Diagram


Specifications

PARAMETER
MIN
MAX
UNIT
Supply Voltage (pins 25, 27 & 28)
(pin 15)
-
-
+9
+6.5
VDC
Voltage on pins 10 through 14, 16
through 19 with VSS = 0 V
-0.3
VSYN +0.3
VDC
Input Voltages (pins 1, 2 & 5)
-
0
VDC
Input Power (pins 1 & 2)
(pin 5)
(pins 13, 16 & 19)
-
-
-
+10
+17
+20
dBm
Storage Temperature
-55
+150
°C
Soldering Temperature
-
260
°C
Soldering Time
-
4
Sec
Thermal Impedance, JC
-
40
°C/W
Stresses in excess of the absolute ratings may cause permanent damage.Functional operation is not implied under these conditions. Exposure to absolute ratings for extended periods of time may adversely affect reliability.


Description

The ACD2204 uses both GaAs and Si technology to provide the downconverter and dual synthesizer functions in a double conversion tuner gain block,local oscillator, balanced mixer, IF Amplifier, and dual synthesizer. The specifications meet the requirements of CATV/TV/Video and Cable Modem Data applications. The ACD2204 is supplied in a 28 lead SSOP package and requires a single +5 V supply voltage. The IC is well suited for applications where small size, low cost, low auxiliary parts count,and no-compromise performance is important. It provides for cost reduction by lowering the component and packaged IC count and decreasing the amount of labor-intensive production alignment steps, while significantly improving performance and reliability.
