ACA2407E

Features: • 21.3 dB Gain• Very Low Distortion• Excellent 75 Ω Input and Output Match• Stable with High VSWR Load Conditions• Monolithic Design for Consistent Performance Part-to-Part• Low DC Power Consumption• Surface Mount Package Compatible with Au...

product image

ACA2407E Picture
See larger image
SeekIC No. : 004264561 Detail

ACA2407E: Features: • 21.3 dB Gain• Very Low Distortion• Excellent 75 Ω Input and Output Match• Stable with High VSWR Load Conditions• Monolithic Design for Consistent Perf...

ACA2407E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ACA2407E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 21.3 dB Gain
• Very Low Distortion
• Excellent 75 Ω Input and Output Match
• Stable with High VSWR Load Conditions
• Monolithic Design for Consistent Performance Part-to-Part
• Low DC Power Consumption
• Surface Mount Package Compatible with Automatic Assembly
• Low Cost Alternative to Hybrids
• Meets Cenelec Standards




Application

• CATV Line Amplifiers, System Amplifiers, Distribution Nodes

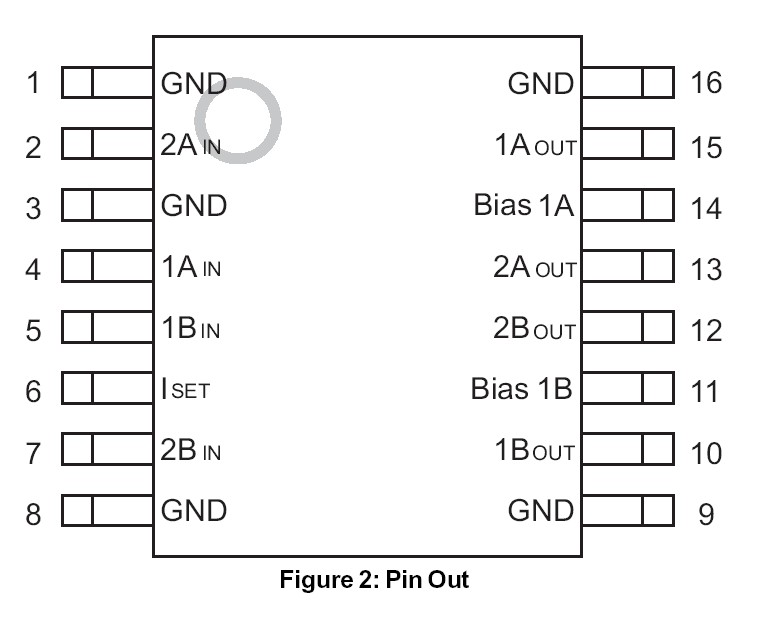

Pinout






Specifications

Gain* (dB) Min 20.4
Gain* (dB) Max 22.4
Noise Figure (dB) Typ 4.0
CTB** (dBc) Typ -65
CSO** (dBc) Typ -60
XMOD** (dBc) Typ -62
Supply Current (mA) Typ 425
Notes * at 870 MHz
** Parts measured with 110 channels, +52 dBmV power, 13.5 dB tilt at 870 MHz







Description

The ACA2407E is a highly linear, monolithic GaAs RF amplifier that has been developed to replace, in new designs, standard CATV hybrid amplifiers. Offered in a convenient surface mount package, the MMIC consists of two pairs of parallel amplifiers that are optimized for exceptionally low distortion and noise figure. A hybrid equivalent that provides flat gain response and excellent input and output return loss over the 40 to 870 MHz CATV downstream band is formed when one ACA2407E is cascaded between two appropriate transmission line baluns.



The ACA2407E is a highly linear, monolithic GaAs RF amplifier that has been developed to replace, in new designs, standard CATV hybrid amplifiers. Offered in a convenient surface mount package, the MMIC consists of two pairs of parallel amplifiers that are optimized for exceptionally low distortion and noise figure. A hybrid equivalent that provides flat gain response and excellent input and output return loss over the 40 to 870 MHz CATV downstream band is formed when one ACA2407E is cascaded between two appropriate transmission line baluns.
