ABV0235

Features: • Selectable 750kHz to 800MHz range.• Low phase noise output (@ 10kHz frequency offset, -142dBc/Hz for 19.44MHz, -125dBc/Hz for 155.52MHz, -115dBc/Hz for 622.08MHz).• CMOS (ABV0237), PECL (ABV0235 and ABV0238) or LVDS (ABV0239) output.• 12 to 25MHz crystal input.&...

product image

ABV0235 Picture
See larger image
SeekIC No. : 004264353 Detail

ABV0235: Features: • Selectable 750kHz to 800MHz range.• Low phase noise output (@ 10kHz frequency offset, -142dBc/Hz for 19.44MHz, -125dBc/Hz for 155.52MHz, -115dBc/Hz for 622.08MHz).• CMO...

ABV0235 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ABV0235
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Selectable 750kHz to 800MHz range.
• Low phase noise output (@ 10kHz frequency offset, -142dBc/Hz for 19.44MHz, -125dBc/Hz for 155.52MHz, -115dBc/Hz for 622.08MHz).
• CMOS (ABV0237), PECL (ABV0235 and ABV0238) or LVDS (ABV0239) output.
• 12 to 25MHz crystal input.
• No external load capacitor or varicap required.
• Output Enable selector.
• Wide pull range (+/-200 ppm)
• Selectable 1/16 to 32x frequency multiplier.
• 3.3V operation.
• Available in 16-Pin (TSSOP or 3x3mm QFN).


Pinout

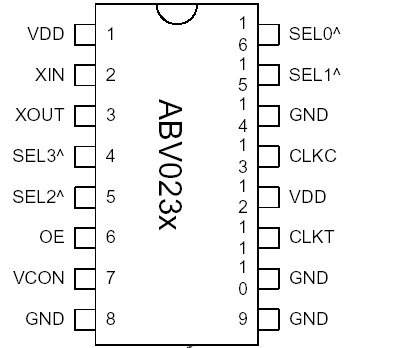

Connection Diagram


Specifications

PARAMETERS
SYMBOL
MIN.
MAX.
UNITS
Supply Voltage
Input Voltage, dc
Output Voltage, dc
Storage Temperature
Ambient Operating Temperature*
Junction Temperature
Lead Temperature (soldering, 10s)
ESD Protection, Human Body Model
VDD
VI
VO
TS
TA
TJ
-0.5
-0.5
-65
-40
4.6
VDD+0.5
VDD+0.5
150
85
125
260
2
V
V
V
°C
°C
°C
°C
kV

Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above the operational limits noted in this specification is not implied.
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.




Description

The ABV0235 (PECL with inverted OE), ABV0237 (CMOS), ABV0238 (PECL), and ABV0239 (LVDS) are high performance and low phase noise VCXO IC chips. They provide phase noise performance as low as 125dBc at 10kHz offset (at 155MHz), by multiplying the input crystal frequency up to 32x. The wide pull range (+/- 200 ppm) and very low jitter make them ideal for a wide range of applications, including SONET/SDH and FEC. They accept fundamental parallel resonant mode crystals from 12 to 25MHz.
