ABT22V10A5

Features: Fastest 5V 22V10Low ground bounce (<1.0V typical)Live insertion/extraction permittedHigh output drive capability: 48mA/-16mVaried product term distribution with up to 16 product terms peroutput for complex functionsMetastable hardened flip-flopsProgrammable output polarityDesign suppo...

product image

ABT22V10A5 Picture
See larger image
SeekIC No. : 004264343 Detail

ABT22V10A5: Features: Fastest 5V 22V10Low ground bounce (<1.0V typical)Live insertion/extraction permittedHigh output drive capability: 48mA/-16mVaried product term distribution with up to 16 product terms p...

ABT22V10A5 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ABT22V10A5
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Fastest 5V 22V10
Low ground bounce (<1.0V typical)
Live insertion/extraction permitted
High output drive capability: 48mA/-16m
Varied product term distribution with up to 16 product terms per
output for complex functions
Metastable hardened flip-flops
Programmable output polarity
Design support provided for third party CAD development and
programming hardware
mproved fuse verification circuitry increases reliability

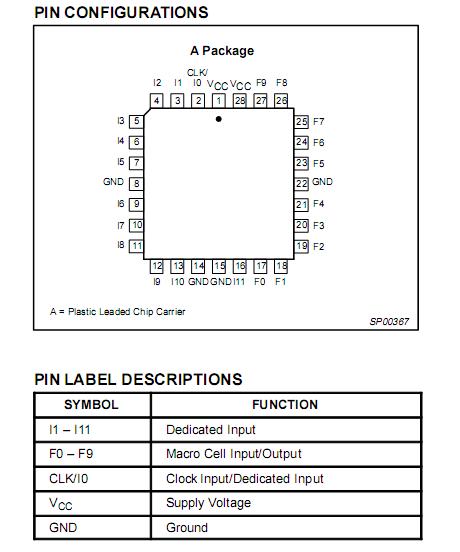

Pinout

Connection Diagram


Specifications

Symbol Description
 RATINGS Units
MIN MAN

VCC
Supply voltage2

-0.5

  +7.0 VDC
Vin
Input voltage2		 -1.2  VCC  + 0.5 VDC
VOUT
 Output voltage -0.5  VCC  + 0.5 VDC
VIN Input currents -30  +30 mA
IOUT
 Output currents -  +100 mA
Tstg Storage temperature range -65  +150 °C



Description

The ABT22V10A is a versatile PAL® device fabricated on Philips BiCMOS process known as QUBiC. The QUBiC process produces very high speed, 5 volt devices (5.0ns) which have excellent noise immunity. The ground bounce of an output held low while the 9 remaining outputs are switching is less than 1.0V (typical).

The ABT22V10A outputs are designed to support Live Insertion/Extraction into powered-up systems. The output is  ramp, the output remains specially designed so that during VCC 2.1V. At that time, the outputs become fully 3-Stated until VCCfunctional, depending upon device inputs. (See DC Electrical, Page 4).Characteristics, Symbol IPU/PDThe ABT family of devices have virtually no ground bounce- less , measured on an unswitched output (9 remaining than 1.0 volts VOLP outputs switching, each with a 50pF load tied to ground).
