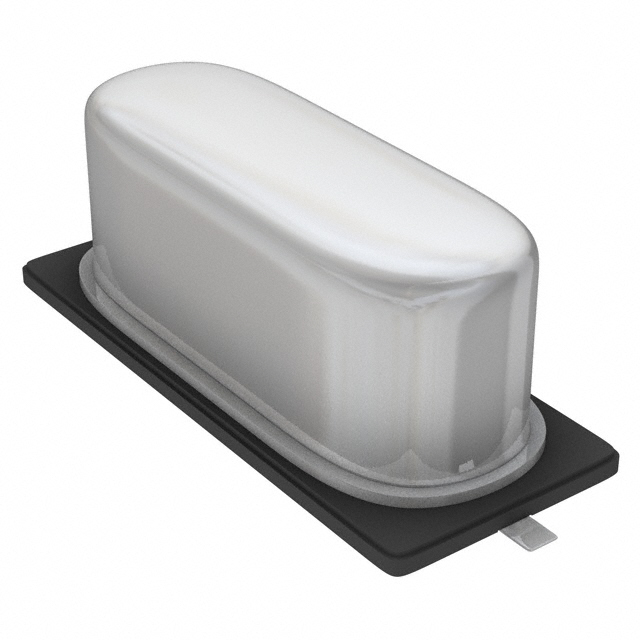

See larger image

SeekIC No. : 003412948 Detail

ABLS-14.822520MHZ-10-J4Y: CRYSTAL 14.822520 MHZ 10PF SMD

ABLS-14.822520MHZ-10-J4Y Data Sheet

US $ .23~.43 / Piece | Get Latest Price

Part Number:: ABLS-14.822520MHZ-10-J4Y
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~500

Unit Price
$.43
$.37
$.31
$.29
$.23

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ABLS-10.000MHZ-B2-T evaluate
US $.2 - .34 / Piece

Crystals +/-20ppm 10 MHZ FUNDAMENTAL
ABLS-10.000MHZ-B4-T evaluate
US $.15 - .25 / Piece

Crystals 10.000MHz 30ppm -20C +70C
ABLS-10.000MHZ-K4T evaluate
US $.21 - .23 / Piece

Crystals 10 MHz 50ppm -40+125C 18pF

Product Details

Quick Details

Series:	ABLS	Manufacturer:	Abracon Corporation
Type:	MHz Crystal	Frequency:	14.82252MHz
Frequency Stability:	±30ppm	Frequency Tolerance:	±30ppm
Load Capacitance:	10pF	ESR (Equivalent Series Resistance):	50 Ohm
Operating Mode:	Fundamental	Operating Temperature:	-40°C ~ 105°C
Ratings:	-	Mounting Type:	Surface Mount
Packaging :	Reel - 7 in	Package / Case:	HC49/US
Size / Dimension:	0.449" L x 0.185" W (11.40mm x 4.70mm)	Height:	0.165" (4.20mm)

Description

Type: MHz Crystal
Frequency Tolerance: ±30ppm
Operating Mode: Fundamental
Ratings: -
Mounting Type: Surface Mount
Package / Case: HC49/US
Packaging: Cut Tape (CT)Alternate Packaging
ESR (Equivalent Series Resistance): 50 Ohm
Size / Dimension: 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height: 0.165" (4.20mm)
Frequency Stability: ±30ppm
Load Capacitance: 10pF
Series: ABLS
Manufacturer: Abracon Corporation
Operating Temperature: -40°C ~ 105°C
Frequency: 14.82252MHz

Parameters:

Technical/Catalog Information	ABLS-14.822520MHZ-10-J4Y
Vendor	Abracon Corporation
Category	Crystals and Oscillators
Frequency	14.82252MHz
Load Capacitance	18pF
Package / Case	HC49/US
Packaging	Tape & Reel (TR)
Frequency Tolerance	±30ppm
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature	-40°C ~ 105°C
Type	Quartz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ABLS 14 822520MHZ 10 J4Y ABLS14822520MHZ10J4Y 535 9709 2 ND 53597092ND 535-9709-2
