Product Details

Description



Features:

CMOS output
Selectable Drive capability (15pF or 30pF output load).
Single AC coupled input (min. 100mV swing).
Input range from DC to 200 MHz.
2.5V to 3.3V operation.
Available in 8-Pin SOIC and 3x3mm QFN.

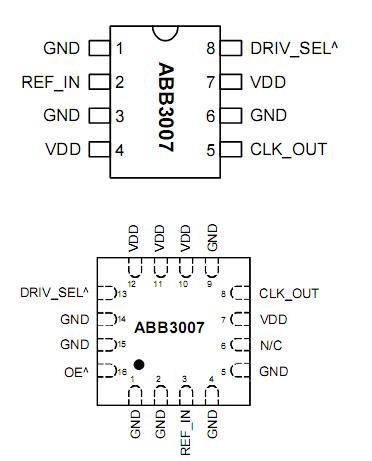

Pinout

Connection Diagram


Specifications

PARAMETERS SYMBOL
MIN. MAX
UNITS

Supply Voltage

V DD   4.6 V
Input Voltage, dc V I -0.5 VDD +0.5 V
Output Voltage, dc V O -0.5 VDD +0.5 V
Storage Temperature T S -65 150 C
Ambient Operating Temperature* T A -40 85

°C

Junction Temperature T J 5.0 125 °C
Lead Temperature (soldering, 10s)     260 °C
ESD Protection, Human Body Model   10 2 kV



Description

The ABB3007 is a low cost, high performance,  high speed, buffer that reproduces any input fre- quency from DC to 200MHz. It provides CMOS  output with 15pF output load drive capability.  Any input signal with at least 100mV swing can  be used as reference signal. This chip is ideal for conversion from sine wave to CMOS.
