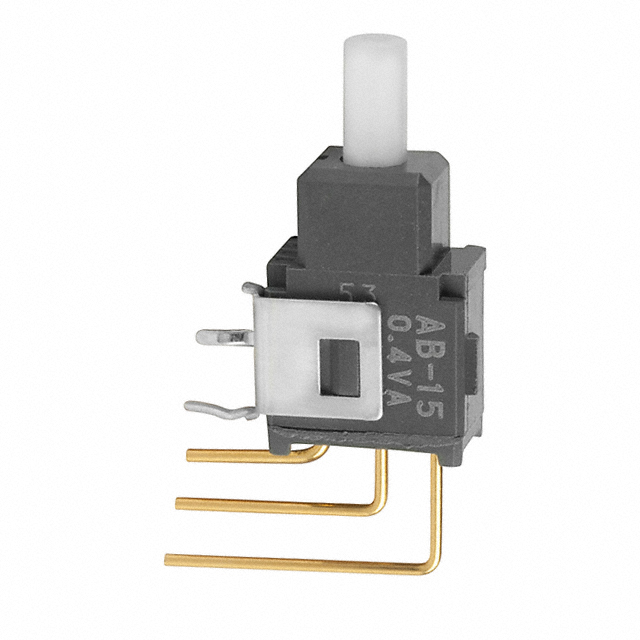

See larger image

SeekIC No. : 004167585 Detail

AB15AV: SWITCH PUSH SPDT 0.4VA 28V

AB15AV Data Sheet

US $ 4~4 / Piece | Get Latest Price

Part Number:: AB15AV
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1

Unit Price
$4

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

AB150 evaluate
US $14.66 - 14.66 / Piece

ANT A-BASE VHF 1/4 WAVE CHROME
AB150/450C evaluate
US $21.27 - 21.27 / Piece

ANT A-BASE VHF 1/4WAVE CT CHROME
AB150/450CS evaluate
US $27.66 - 27.66 / Piece

ANT A-BASE VHF 1/4WAVE CT CHROME

Product Details

Quick Details

Series:	AB	Manufacturer:	NKK Switches
Type:	Standard	Circuit:	SPDT
Switch Function:	On-Mom	Current Rating:	0.4VA (AC/DC)
Package / Case :	CFP-16	Voltage Rating - AC:	28V
Voltage Rating - DC:	28V	Actuator Type:	Plunger for Cap
Color - Actuator/Cap:	White	Illumination Type, Color:	-
Illumination Voltage (Nominal):	-	Mounting Type:	Through Hole, Right Angle, Vertical
Termination Style:	PC Pin	Ingress Protection:	-
Features:	Sealed - Fully	Panel Cutout Dimensions:	-

Description

Type: Standard
Actuator Type: Plunger for Cap
Color - Actuator/Cap: White
Illumination Type, Color: -
Illumination Voltage (Nominal): -
Termination Style: PC Pin
Ingress Protection: -
Panel Cutout Dimensions: -
Switch Function: On-Mom
Current Rating: 0.4VA (AC/DC)
Circuit: SPDT
Voltage Rating - DC: 28V
Voltage Rating - AC: 28V
Mounting Type: Through Hole, Right Angle, Vertical
Packaging: Tray
Features: Sealed - Fully
Manufacturer: NKK Switches
Series: AB

Parameters:

Technical/Catalog Information	AB15AV
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Plunger for Cap
Circuit	SPDT
Contact Rating @ Voltage	0.4VA @ 28VAC/DC
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Mounting Type	Through Hole
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	AB15AV AB15AV
