Features:

• Dual P-Channel MOSFETS
• 500mA steady state load current
• 600mA minimum current limit trip point
• Low quiescent current, typically 10µA.
• Over temperature protection
• Fast transient response:
• < 1µs response to short circuit
• 400mΩ typical RDS(ON)
• Undervoltage Lockout
• Temp range -40 to 85°C
• FAULT flag with 2ms blanking
• 6-pin SOT23 package




Application

• USB ports
• Peripheral ports
• Desktop PCs
• Cell phone ports




Pinout

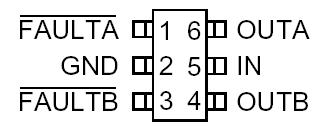

Connection Diagram




Specifications

Symbol Description Value Units
VIN Input Voltage -0.3 to 6 V
VOUT OUTA or OUTB to GND -0.3 to 6 V
VFLG FAULT or FAULB to GND -0.3 to 6 V
IOUT Maximum DC Output Current Internally Limited A
TJ Operating Junction Temperature Range -40 to 150 °C
VESD ESD Rating1 - HBM 5000 V
TLEAD Maximum Soldering Temperature (at Leads) 300 °C





Description

The AAT4682 Dual Electronic Resettable fuse is part of the AnalogicTech Application Specific Power MOSFET (ASPM™) line of products. AAT4682 has two 1A current limited P-channel MOSFET power devices that remain fully enhanced as long as the input power supply is above an under voltage lockout threshold, and the load is below the current limit setting. If the load increases above the current limit setting, as is the case during a short circuit, the MOSFET effectively becomes a constant current source equal to the current limit. If the current limit condition persists long enough to heat the MOSFET to an extreme temperature, both devices will thermal cycle off and on until the current limit condition is removed. Independent open drain FAULT flags signal an over current or over temperature condition. Quiescent current typically is a low 10µA.

The AAT4682 is available in a 6 pin SOT-23, specified over a -40 to 85°C temperature range.
