AAT4296

Features: • VIN Range: 1.8V to 5.5V• Independent Push/Pull Channels- AAT4296: Five Channels- AAT4298: Six Channels• User-Programmable Interface• Single GPIO Controls State of Each Output• Optional Fast Auto-Discharge• Low Quiescent Current: 3µA TypicalR...

product image

AAT4296 Picture
See larger image
SeekIC No. : 004261214 Detail

AAT4296: Features: • VIN Range: 1.8V to 5.5V• Independent Push/Pull Channels- AAT4296: Five Channels- AAT4298: Six Channels• User-Programmable Interface• Single GPIO Controls State of...

AAT4296 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AAT4296
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• VIN Range: 1.8V to 5.5V
• Independent Push/Pull Channels
- AAT4296: Five Channels
- AAT4298: Six Channels
• User-Programmable Interface
• Single GPIO Controls State of Each Output
• Optional Fast Auto-Discharge
• Low Quiescent Current: 3µA Typical
• Temperature Range: -40°C to +85°C
• Available in Pb-Free Packages:
- AAT4296: 8-Pin SC70JW
- AAT4298: 10-Pin SC70JW and
12-Pin TSOPJW


Application

• Cell Phones
• Multiple Low Power Switching
• Personal Communication Devices
• Portable Electronic Devices


Pinout

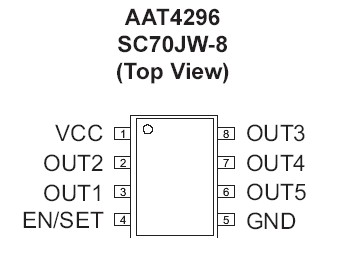

Connection Diagram


Specifications

Symbol Description Value Units
VCC to GND
OUTx to GND
EN/SET
TJ
 Input to GND
Output (Source) to GND
EN/SET to GND
Operating Junction Temperature Range		 -0.3 to 6.0
-0.3 to VIN + 0.3
-0.3 to 6.0
-40 to +150
V
V
V
°C



Description

The AAT4296/98 SmartSwitch is a member of AnalogicTech's Application Specific Power MOSFET ™ (ASPM™) product family. The AAT4296/98 is comprised of five/six push/pull output switches that gate each respective output between a common input supply and ground. This device is targeted for I/O expansion applications, but can also be used for a combination of general purposes to simplify power switching with an off state load discharge.

The AAT4296/98 operates over an input voltage range of 1.8V to 5.5V, making it ideal for batterypowered applications. The state of each output channel is controlled with a single GPIO via the EN/SET pin using AnalogicTech's Simple Serial Control™ (S2Cwire™) interface. When EN/SET is pulled to logic high, the device is enabled and consumes 3µA of typical quiescent current. In the off state, each output is pulled low to ground to affect a logic low state for I/O expander or power switching applications; this circuit will act as a load discharge function to rapidly turn off a load circuit.

Rated over the -40°C to +85°C temperature range, the AAT4296 is offered in a Pb-free 8-pin SC70JW package, and the AAT4298 is offered in both a Pbfree 10-pin SC70JW and a Pb-free 12-pin TSOPJW package.
