AAT3216

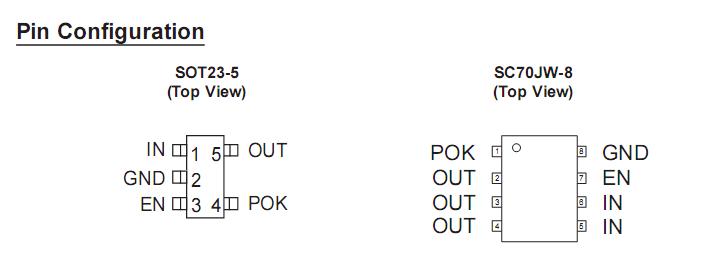

The AAT3216 MicroPower Low Dropout Linear Regulator is ideally suited for portable applications where low noise, extended battery life, and small size are critical. The AAT3216 has been specifically designed for low output noise performance, fast transient response, and high power supply rejection ratio (PSRR), making it ideal for powering sensitive RF circuits. Other features include low quiescent current (typically 70A) and low dropout voltage, typically less than 200mV at full output current. The device is output short circuit protected and has a thermal shutdown circuit for additional protection under extreme conditions. The AAT3216 also features a low-power shutdown mode for extended battery life. A Power-OK open-drain output signals when V_OUT is in regulation. The AAT3216 is available in a space-saving 5-pin SOT23 or an 8-pin SC70JW package in 12 factory-programmed voltages.

The AAT3216 MicroPower™ Low Dropout Linear Regulator is ideally suited for portable applications where low noise, extended battery life and small size are critical. The AAT3216 has been specifi- cally designed for low output noise performance, fast transient response and high power supply rejection ratio (PSRR), making it ideal for poweringsensitive RF circuits.

Other features include low quiescent current, typi- cally 70A, and low dropout voltage which is typi cally less than 200mV at full output current. The device is output short circuit protected and has a thermal shutdown circuit for additional protection under extreme conditions.
